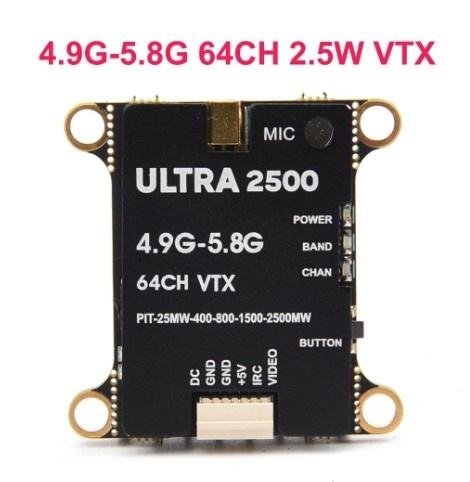

ULTRA 2500 VTX 2.5W 5.8G 64CH Adjustable

Model: Ultra2500 VTX 4.9G-5.8G 2.5W

Input voltage: DC 7-36V(2-8S Battery)

Output: 5V@600mA(Power 5V to camera)

Input impedance: 75Ω

Protocol: IRC Tramp

Antenna connector: MMCX connector

Cable connector: GH1.25-6P connector

Output power: 25mW/400mW/800mW/1500mW/2500mW/Pit mode

Frequency tables: 64 CH

Video format: PAL / NTSC

Microphone: Built in microphone

Size: 36.5mmx36.5mmx12mm

Weight: 15g(without cable)

Mounting holes: 30.5mmX30.5mm(M3)

Note: If you want to use 4.9G and 5.8G bands at the same time, please use the antenna and VRX that can cover the frequency from 4.9Ghz-5.8Ghz . If the antenna and VRX cannot cover all bands, you may need to use different antenna and receiver when using 4.9G and 5.8G bands.

Package Included:

1 x 4.9G-5.8G 64CH 2.5W FPV VTX
