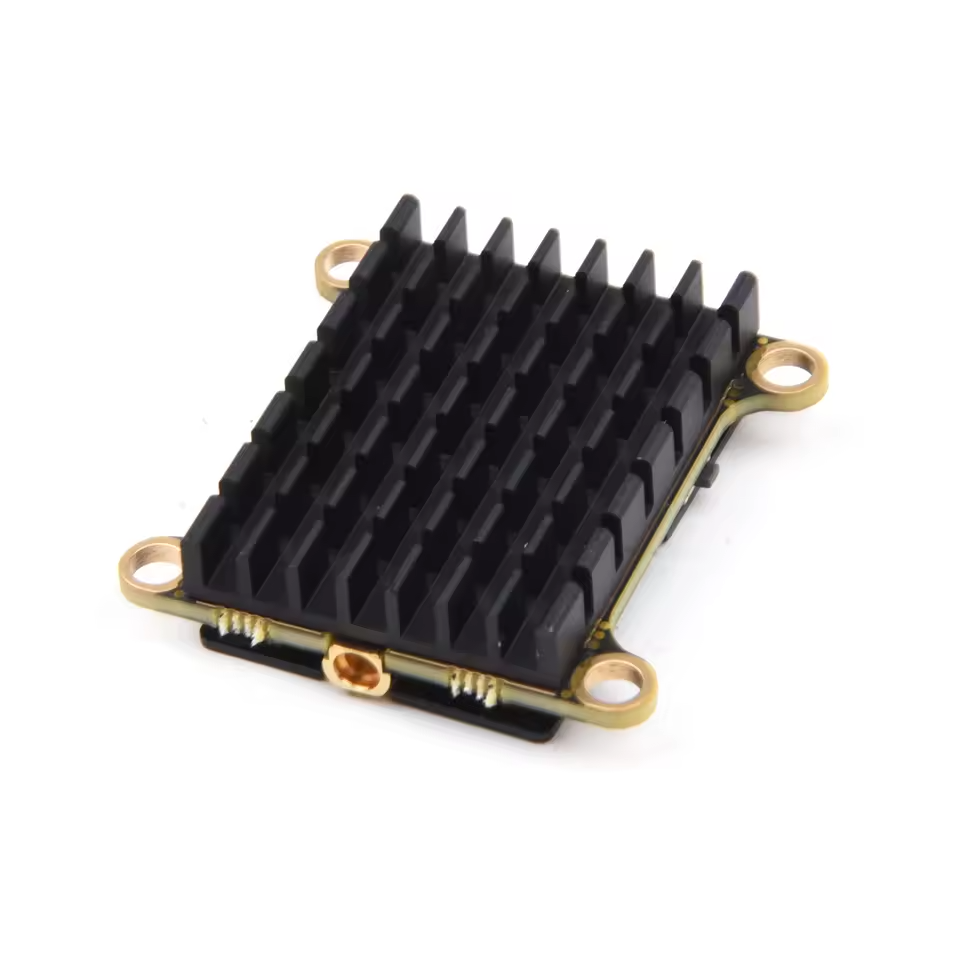

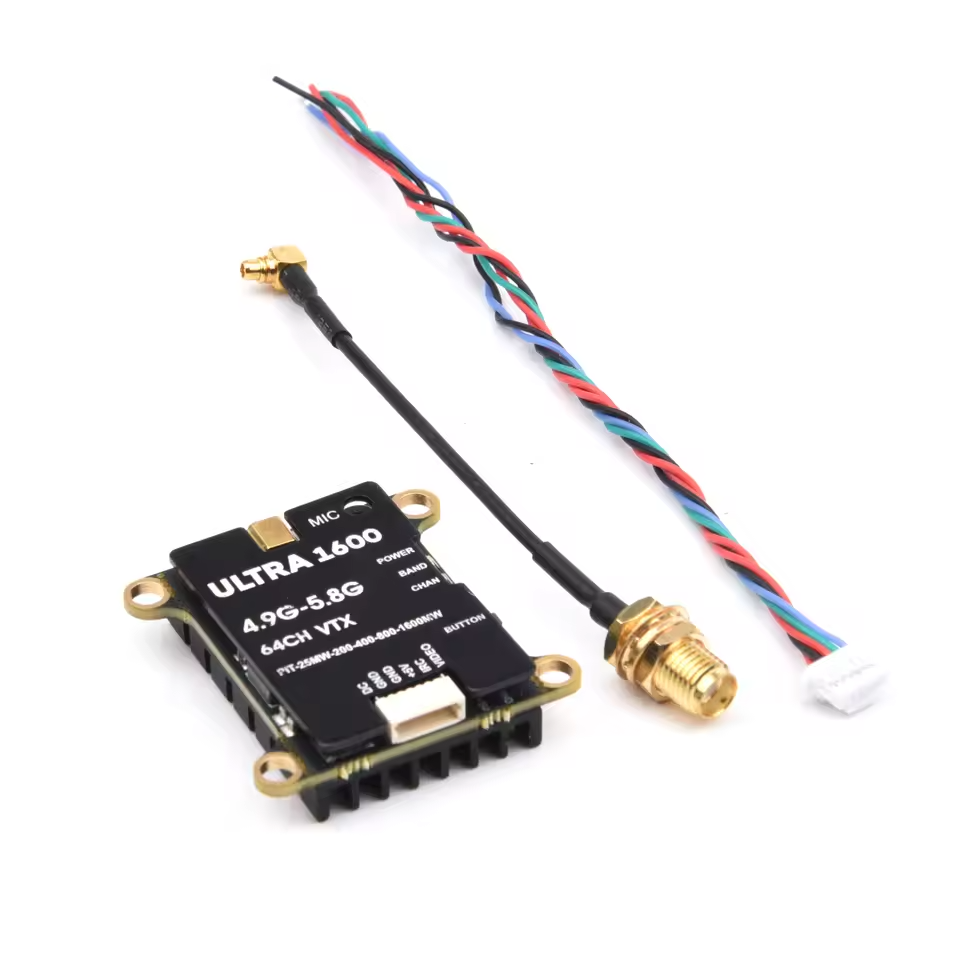

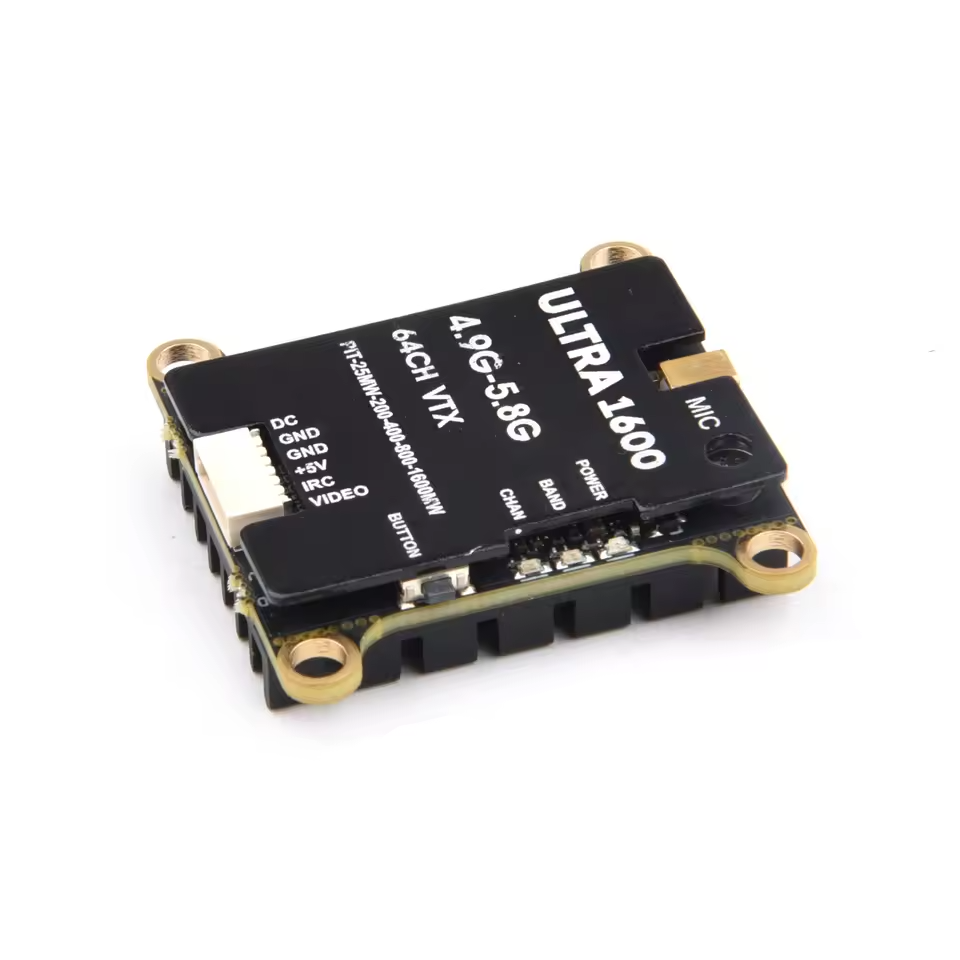

Model: Ultra1600 VTX 4.9G-5.8G 1.6W
Model: Ultra1600 VTX 4.9G-5.8G 1.6W
Input voltage: DC 7-36V(2-8S Battery)
Output: 5V@600mA(Power 5V to camera)
Input impedance: 75Ω
Protocol: IRC Tramp
Antenna connector: MMCX connector

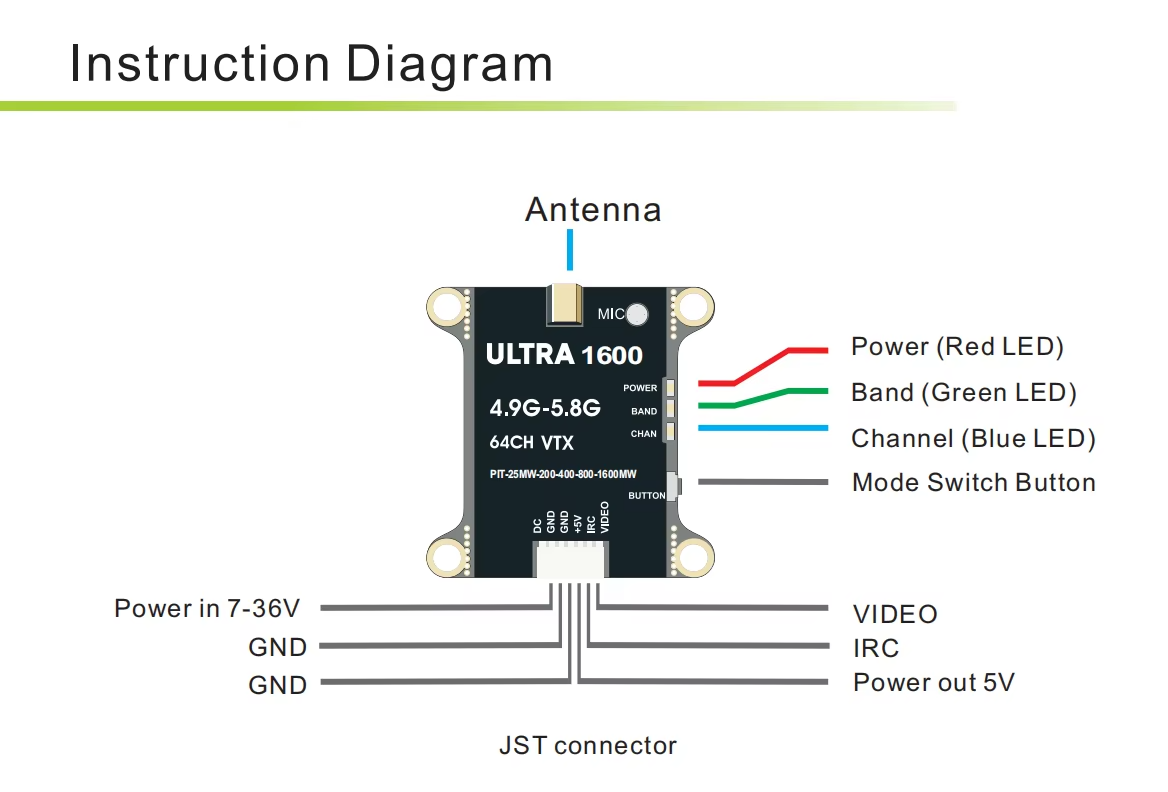

Cable connector: GH1.25-6P connector
Output power: 25mW/200mW/400mW/800mW/1600mW/Pit mode
Frequency tables: 64 CH
Video format: PAL / NTSC
Microphone: Built in microphone
Size: 36.5mmx36.5mmx12mm
Weight: 15g(without cable)
Mounting holes: 30.5mmX30.5mm(M3)
Features
1. 1.6W super-power ,suitable for Long Range flight with good stability.
2. Six power levels: 25mW/200mW/400mW/800mW/1600mW/Pit mode .
3. Two-layer board cooling structure,separate power BEC and main-board,reducing
and shielding from the insinal interference.
4. Temperature control protection function that can prevent high temperature
burning.
5. Wide voltage input, supports 7V-36V voltage input.
6. VTX control protocol is IRC Tramp,supports OSD parameter adjustment.
7. VTX built in microphone,real-time return of Drone’s sounds.
8. Has 3 regional frequency tables to meet the needs of various regions.
9. One function buttons, three indicator lights, easy to operate.
10. Mounting holes is 30.5mmx30.5mm.
