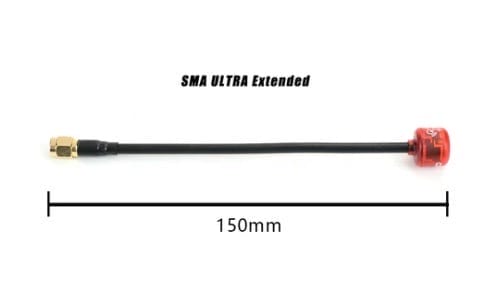

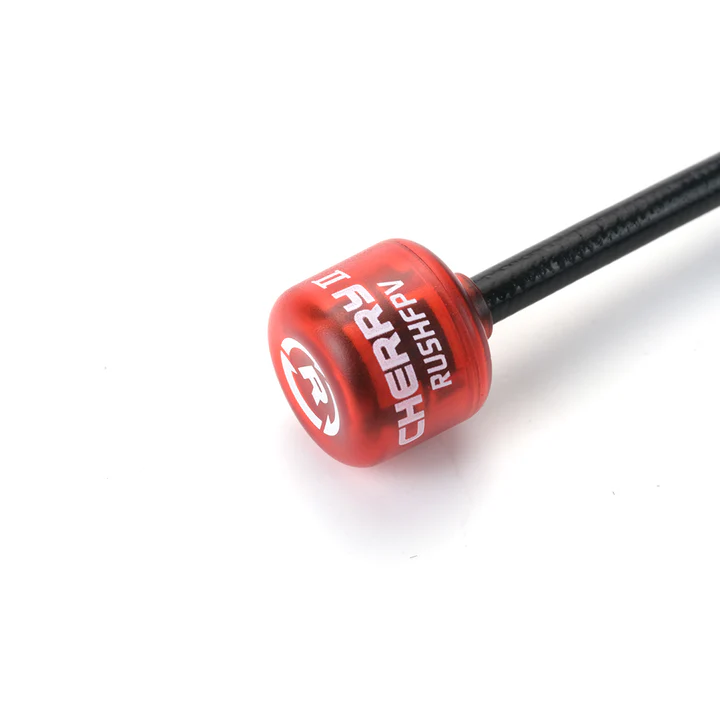

RushFPV Cherry 2 Extra Extended Antenna 5.8G RHCP SMA 150mm

RushFPV Cherry 2 Extra Extended Antenna 5.8G RHCP SMA 150mm (1-pack)

Cherry antennas 2 from RushFPV are optimised for racing FPV drones with a 5.6-6 GHz bandwidth, providing consistent transmission across all channels. They feature ideal circular polarisation to reduce screen flicker and are built to withstand impacts. The flexible pipe protects the cable from bends and shocks. With a VSWR below 1.2 between 5650 and 5950 MHz, they achieve up to 98% transmission efficiency and reduce VTX heating. Quick to install with standard SMA connectors, their length can be customised. Each antenna is professionally tested for quality before shipping.

Features

• Maximum Signal Coverage: The 5.6-6 GHz bandwidth covers the entire frequency band, ensuring consistent transmission power across all channels.
• Ideal Axial Ratio: Provides optimal circular polarization, effectively suppressing screen flicker caused by multi-beam interference.
• Durable and Compact: Designed to withstand impacts through extensive testing, ensuring resilience and reliability.
• Flexible Design: The robust pipe can endure angular bends and shocks, preventing cable damage.
• High Transmission Efficiency: With a VSWR below 1.2 between 5650 and 5950 MHz, transmission efficiency reaches up to 98%, helping reduce VTX heating.
• Easy Installation: The antenna clamps match the size of standard SMA flange connectors, and the antenna tube length can be customised as needed.
• Quality Assurance: Cherry antennas are fine-tuned in a professional microwave laboratory at Rush FPV. Each antenna is tested with a network analyzer before leaving the factory.

Specifications

• Gain: 1.2dBi
• S11 SWR: 1.4 max – 1.1 min
• Band Width: 5600-6000-MHz
• Axial Ratio: Around 1.0
• Polarisation: RHCP
• Connector: SMA

Includes

• 1x RushFPV Cherry 2 Extra Extended Antenna 5.8G RHCP SMA 150mm (1-pack)
