The Moonlight is a brand new HD FPV system from Walksnail that won’t break the bank. Boasting 4k/60fps, amazing low light detail, EIS and Gyroflow technology, and a host of other features to make this the HD system on all your frames!

Walksnail Moonlight 4K – Cinematic FPV

• Starlight Camera for low-light
• Supports Gyroflow
• Dual Antennas
• Built-in EIS
• 7.4V-25.2V
• 4k/60FPS
• Natural 160° FOV
• SD card slot

Compatible Goggles/VRX

• Walksnail Avatar Goggles X
• Walksnail Avatar HD
• Walksnail VRX

• Firmware name: AvatarMoonlight_Sky_X.X.X
• Communication Frequency: 5.725-5.850GHz
• Transmitter Power (EIRP): FCC:<30dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm
• 1/O Interface: JST1.0*4(Power in)JST0.8*6(USB)，Micro SD card Slot；IPEX-1
• Sensor: Starlight sensor
• FOV: Max 160°
• Aperture: F2.1
• Shutter: Rolling shutter
• ISO: 100-25600
• Recording resolution: 4K@30/60fps,2.7K@30/60fps,1080p@100/60fps,720p@60fps
• Max Mbps: 150Mbps
• Video format: MP4 (H.264)
• 3D DNR: Support
• Gyroflow: Support
• Built-in EIS: Support
• Wide Power Input: 7.4V-25.2V
• Power consumption: 12V@1.4A, 8V@2.2A
• Memory card type: U3 MicroSD, Max 256G

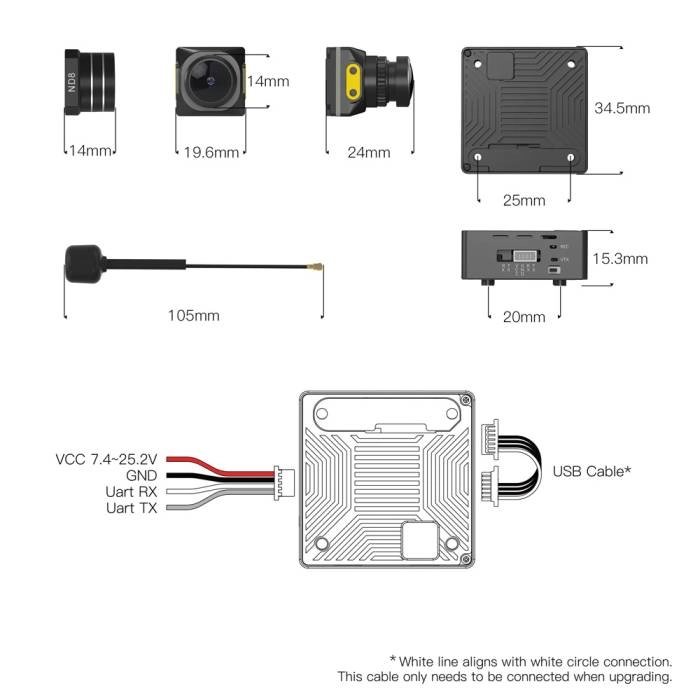

• Camera size: 19.6mm*19mm*24mm
• VTX size: 15.3mm*34.5mm*34.5mm
• VTX Installation hole distance: 20*20mm/25*25mm (M2)
• Weight: 38.5g(Antenna not included)
• OSD: Canvas mode
• Latency: Average delay 22ms
• Antenna: 2 (IPEX)
• Filter: ND8

VTX ANTENNA

• Polarization: LHCP
• Frequency range: 5600MHz-6000MHz
• Average Gain: 1.9dBi
• VSWR: ＜1.5
• Input Impedance: 50Ω
• Interface: IPEX-1
• Dimension: R15 X 45mm （without cable）
• Weight: 2g

• 1x Walksnail Moonlight Kit w/ VTX Unit + Camera
• 1x Mounting Hardware
• 1x Wire Harness
• 1x ND8 Filter
• 2x Antenna
• 1x Manual

Bullet Points:

• Supports 4K/60fps, ensuring that FPV embraces true 4K. Shooting stable and HD videos without unnecessary latency, bring pilots a smoother FPV experience.

• Feature starlight sensor, to improve image quality and performance in low-light scene shooting, ensuring night vision shooting and eliminating frequent camera switching.

• Built-in EIS and supports Gyroflow technology, taking you a smooth and stable video quality, to facilitate and enjoy freestyle fly.

• Comes with silicone pads for mounting the camera, ensuring stability and minimizing camera shake for perfect captures.

• Supports manual shutter and manual ISO settings, take perfect photos regardless of any lighting limits.

• The moonlight camera has a 160° FOV, providing you with a more natural and real picture for the ultimate flying experience.

• Come with ND8 filters to meet the needs of more different shooting scenes, to bring different effects to the shooting.

Q: Can moonlight vtx use other WS cameras?
A: No, but other vtx can use moonlight camera

Q: Where to download the manual?
A:  You can check it on the Download Center page.

Q: How to install the Moonlight Camera (With video board) on other VTX?
A: View Moonlight Camera Installation Guide,  compatible with VTX V2 Module, Mini VTX V3 Module, Mini 1s And Mini 1s Lite Module.
