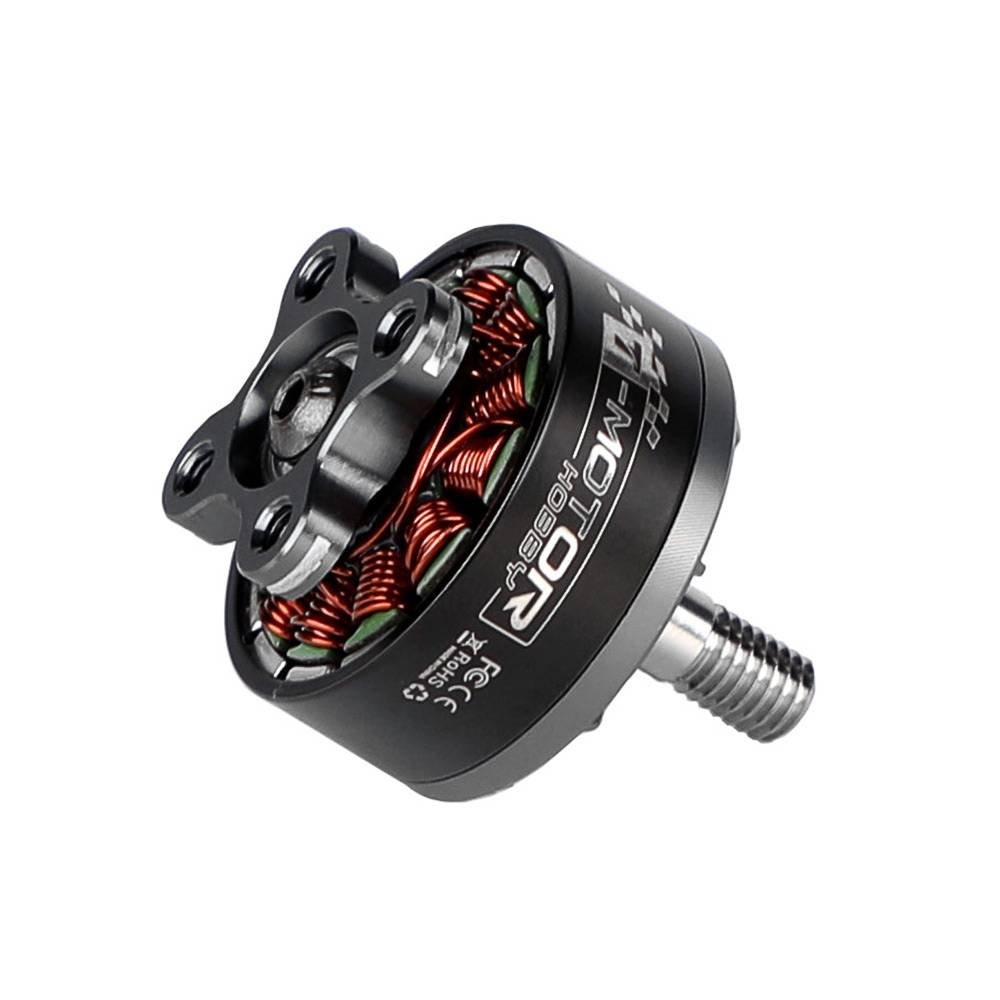

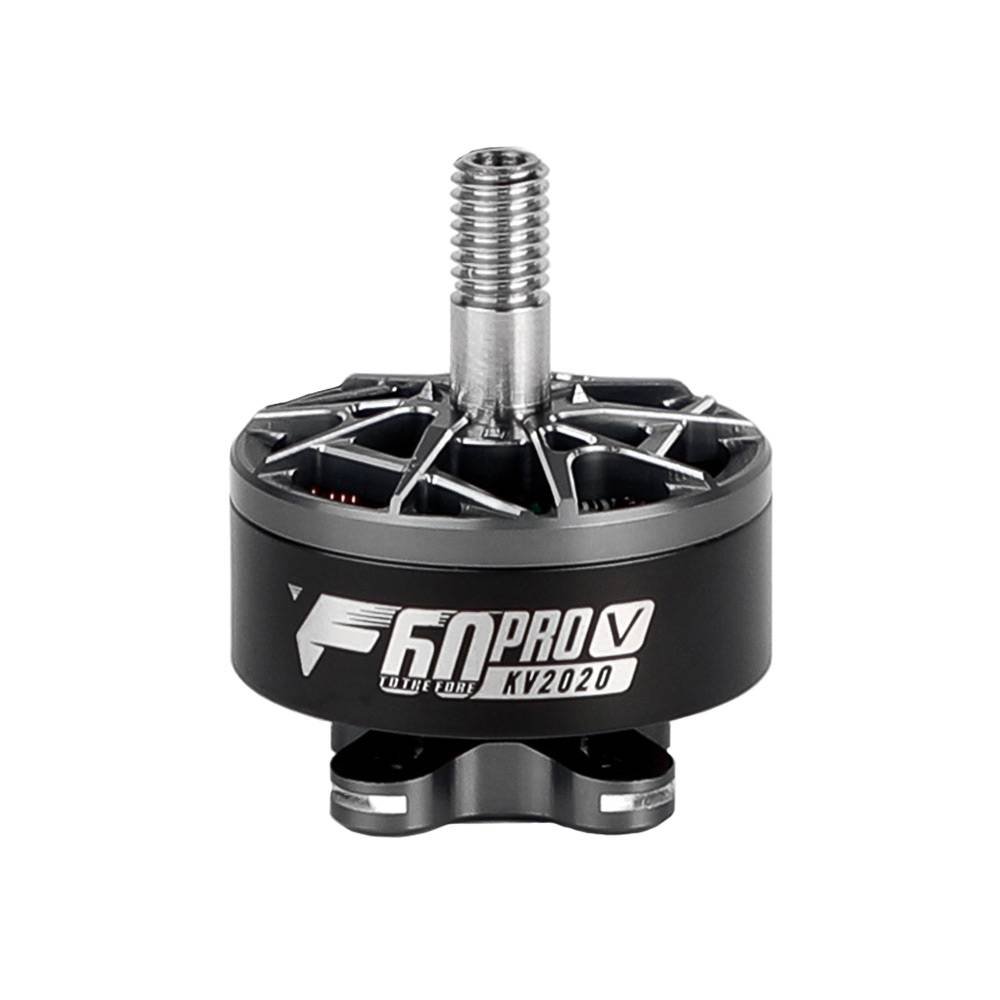

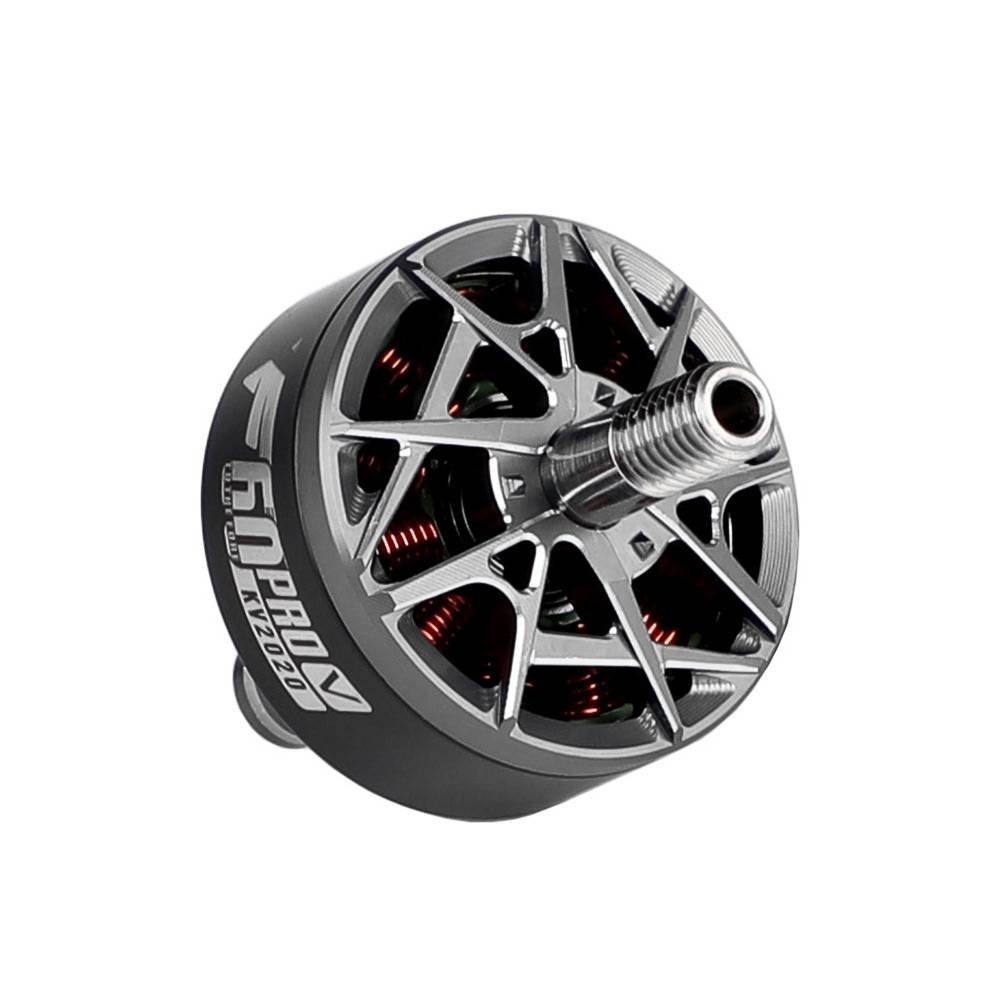

T-Motor F60 PRO V Motor – 1750KV/2020KV

The T-Motor F60 PRO V Motor continues the lineage of great FPV racing motors by T-Motor! The Pro V provides more thrust and increased durability compared to its predecessor. Available in multiple KV options: 1750KV, 1950KV, 2020KV, or 2550KV.

Features

• Lock Screw for Easy Motor Bell Removal
• Anti-Slip Design
• EZO Bearing

Specifications

KV: 1750

• Motor Dimensions: 26.8*31.7mm
• Peak Current (10s): 40.5A
• Weight (Inc. Cable): 34.3g
• Prop Mounting Size: 5mm
• Max.Power (10s): 1003W
• Rated Voltage (Lipo): 4
• Lead: 20#AWG 150mm
• Configuration: 12N14P
• Shaft Diameter: 4mm
• Idle Current: 1A
• Voltage: 25.2V
• KV: 1750

KV: 1950

• Motor Dimensions: 26.8*31.7mm
• Peak Current (10s): 49.3A
• Prop Mounting Size: 5mm
• Weight (Inc. Cable): 33.9g
• Max.Power (10s): 1216W
• Rated Voltage (Lipo): 6S
• Lead: 20#AWG 150mm
• Configuration: 12N14P.
• Shaft Diameter: 4mm
• Idle Current: 1.1A
• KV: 1950

KV: 2020

• Motor Dimensions: 26.8*31.7mm
• Rated Voltage (Lipo): 5-6S
• Weight (Inc. Cable): 33.8g
• Peak Current (10s): 52.7A
• Prop Mounting Size: 5mm
• Max.Power (10s): 1297W
• Lead: 20#AWG 150mm
• Configuration: 12N14P
• Shaft Diameter: 4mm
• Idle Current: 1.25A
• KV: 2020

KV: 2550

• Motor Dimensions: 26.8*31.7mm
• Weight (Inc. Cable): 33.3g
• Rated Voltage (Lipo): 4S
• Peak Current (60s): 50.7A
• Max.Power (60s): 825W
• Configuration: 12N14P
• Lead: 20#AWG 150mm
• Shaft Diameter: 4mm
• Idle Current: 1.6A

Includes

• 1x T-Motor F60 PRO V Motor
• 4x Socket Head Screws
• 1x Prop Locknut
• 1x Shaft Screw
