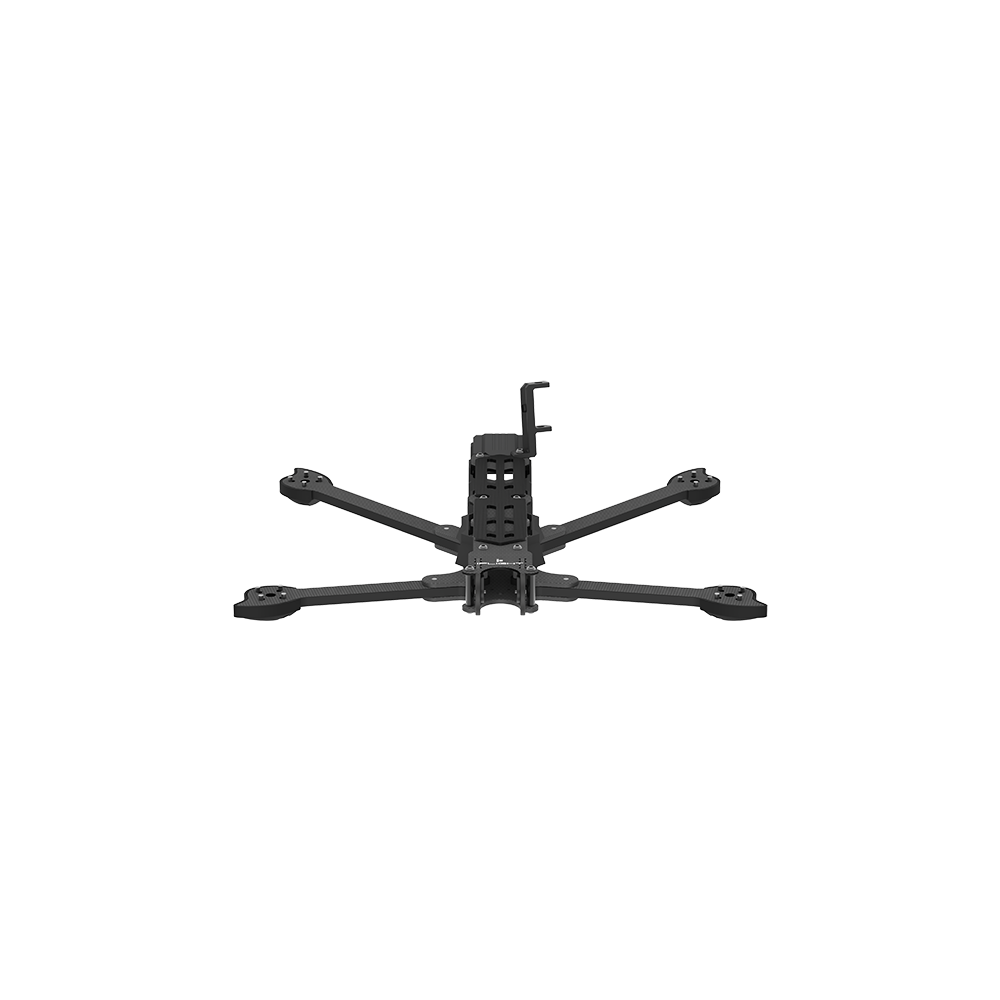

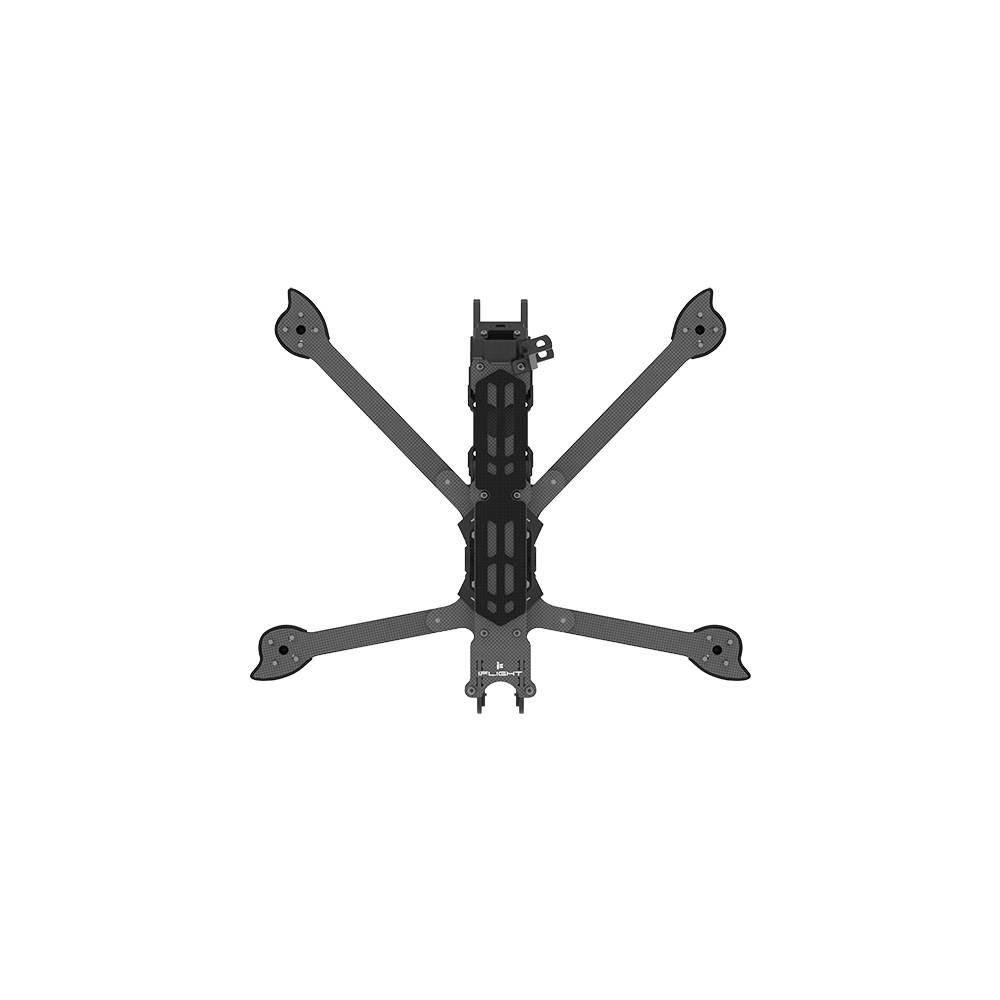

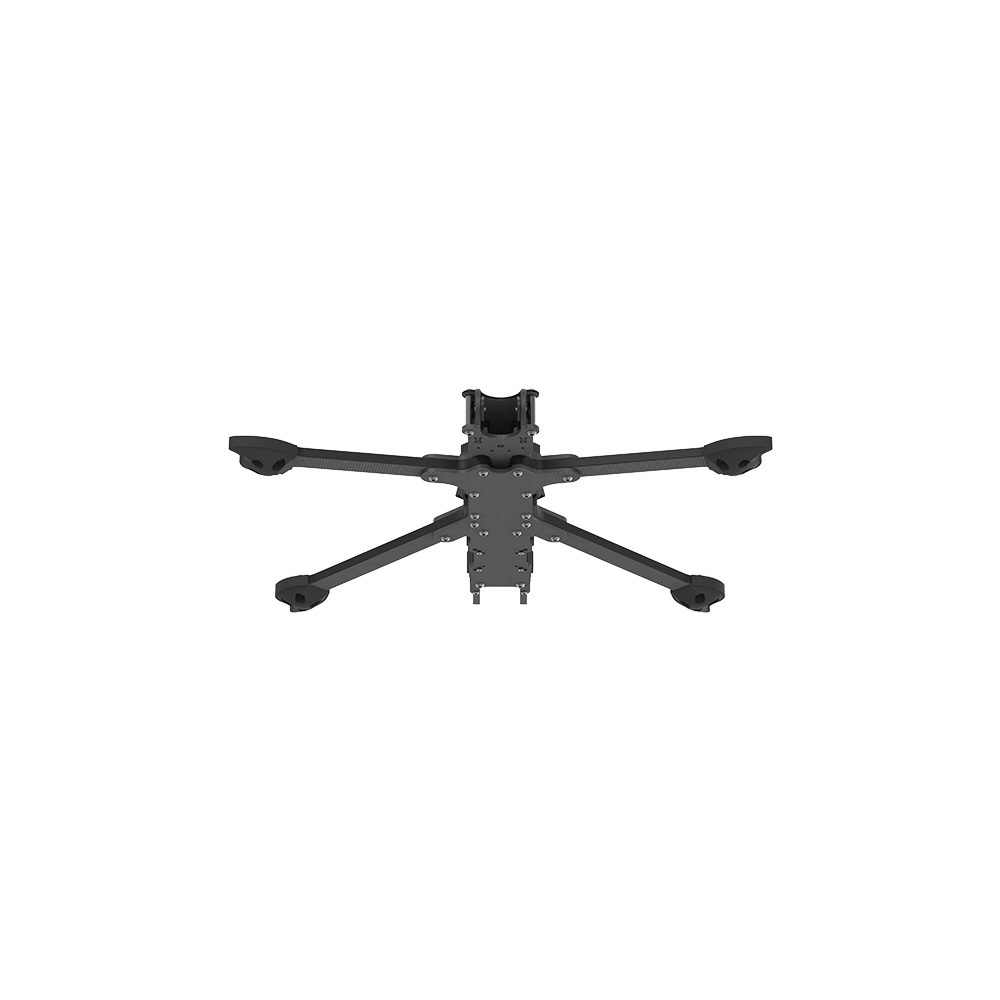

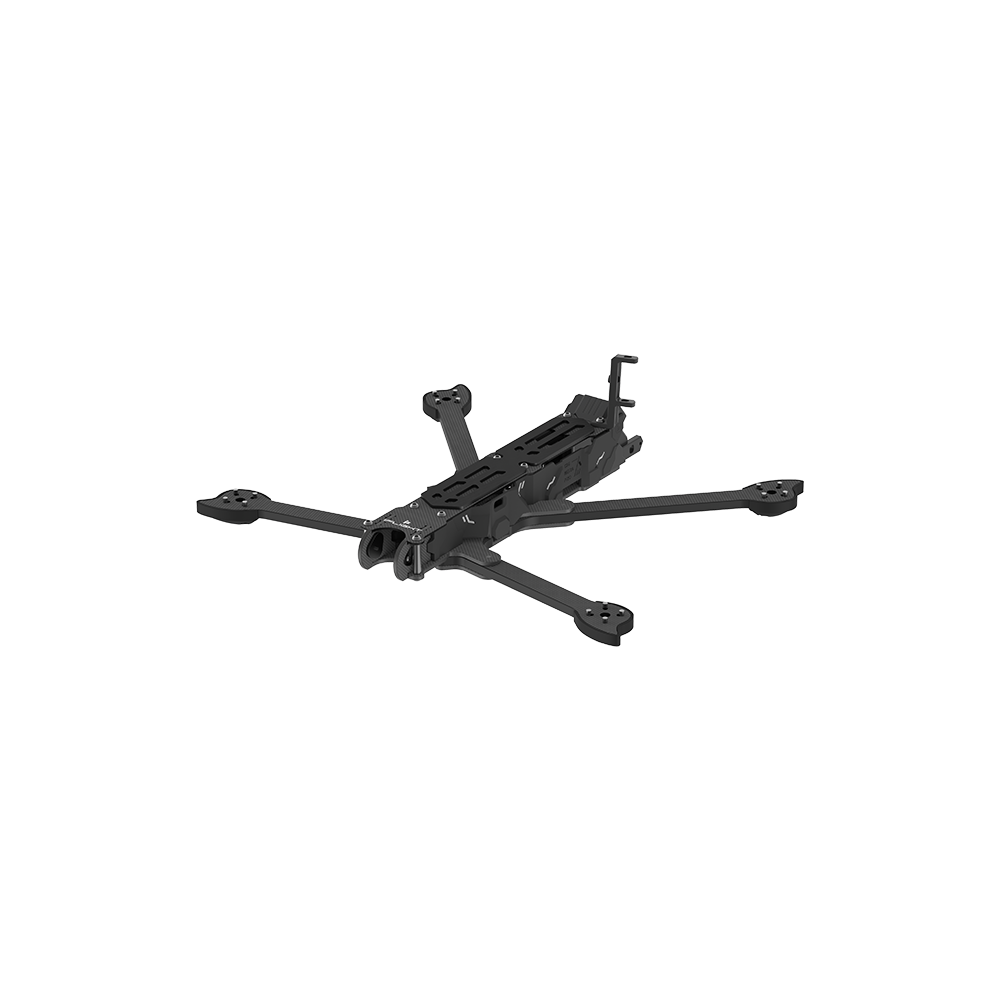

IFLIGHT Chimera7 ECO Frame kit

The KING of Long Range FPV! A super-efficient iFlight 7.5inch Long-Range bird that can go where you couldn’t go before and can carry bigger batteries to get the flight time to surf the swiss alps if you want! A super stiff frame for minimum resonance.

Product Name：Chimera7 ECO Frame Kit

Wheelbase: 327mm

Frame Dimension: L270*W199*H34 mm

Frame Body Dimension: 34mm

Arm Thickness: 6mm

Bottom Plate Thickness: 3mm

Top Plate Thickness: 2mm

Upper Plate Thickness: 3mm

Camera Plate Thickness: 3mm

Max Flight Stack Height: 21mm

Max VTX Height: 30mm

Flight Stack Mounting: 30.5×30.5mm /φ3mm

VTX Mounting: 30.5*30.5 φ3mm / 25*25 φ1.6mm / 20*20 φ2mm

Motor Mounting: 16x16mm / 19*19mm φ3mm

Weight: 357g

1 x Chimera7 ECOFrame Kit

1 x TPU Set

1 x Screw Bag

1 x Anti-Slip Battery Pad

2 x Battery Strap

4 x AMASS MR30 Plugs

The vertical antenna mount will be in the box when shipped and needs to be installed by the customer.

Due to manufacturing processes, the thickness of our products may have a standard manufacturing tolerance of ±0.2mm. The size of the hole may have a standard manufacturing tolerance of ±0.1mm.
