TBS Source One V6 7″ DC

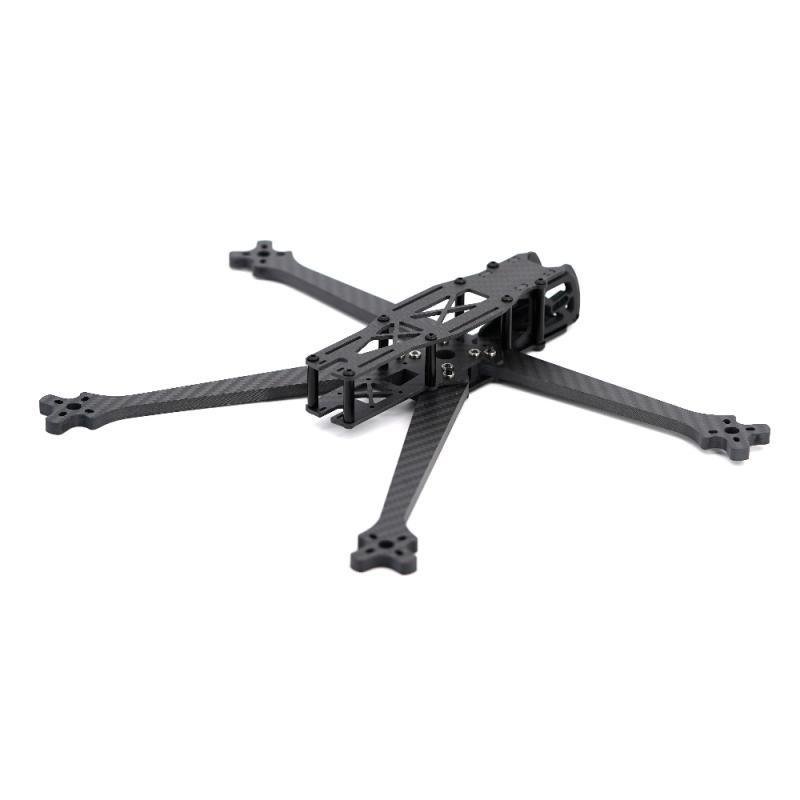

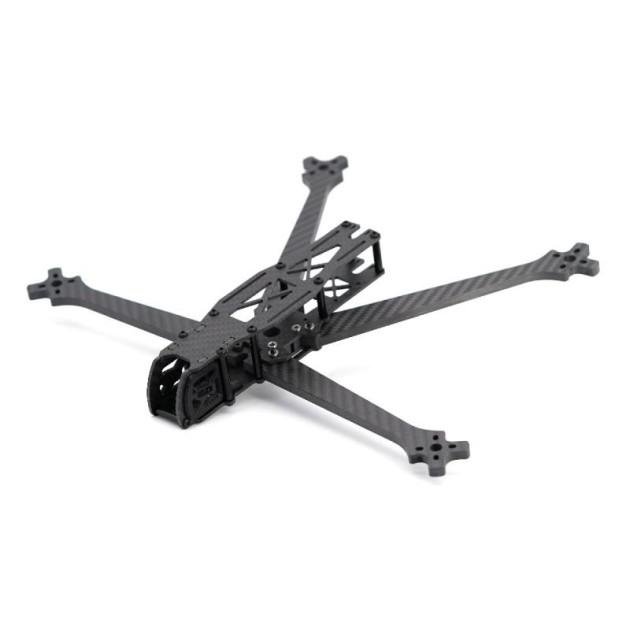

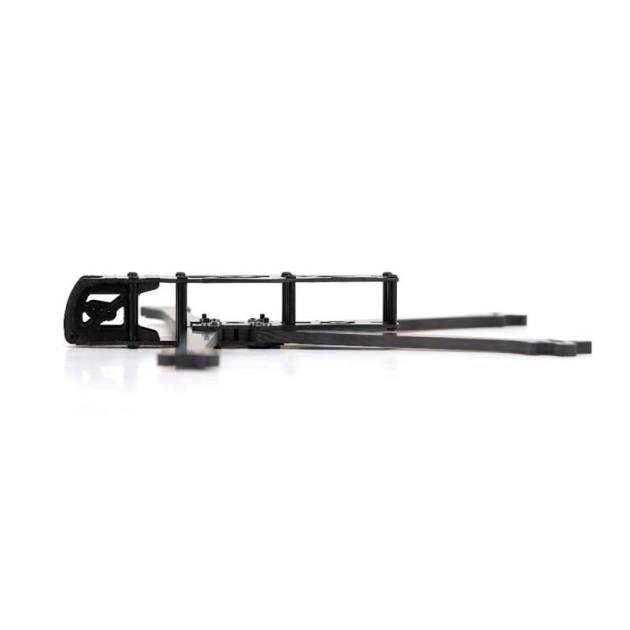

TBS Source One V6 is a 7″ FPV frame developed as a community project under the direction of Team BlackSheep. The Source One project is open-source and aims to provide a durable, well-documented, and affordable frame. The frame drawings are publicly available for free use.

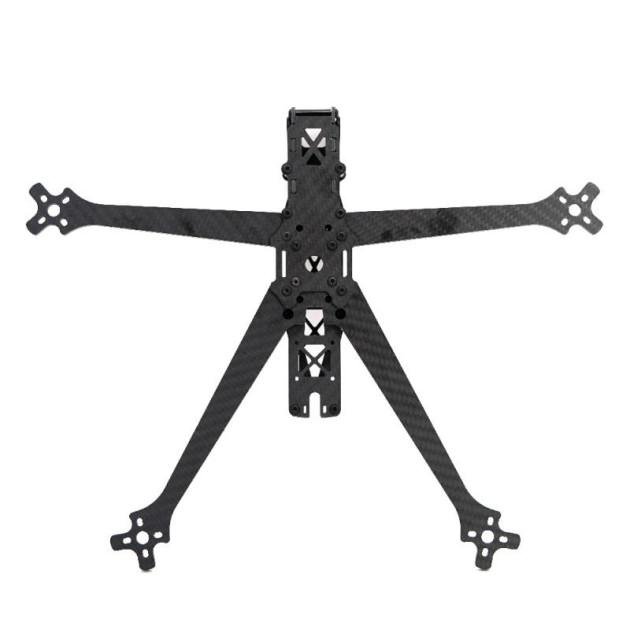

The frame uses a deadcat configuration, where the front arms are shifted outward to prevent the propellers from appearing in the FPV camera view. The construction is designed with a focus on durability to withstand frequent crashes and rough handling. Thanks to ample space, it accommodates all standard FPV components while maintaining a low overall weight.

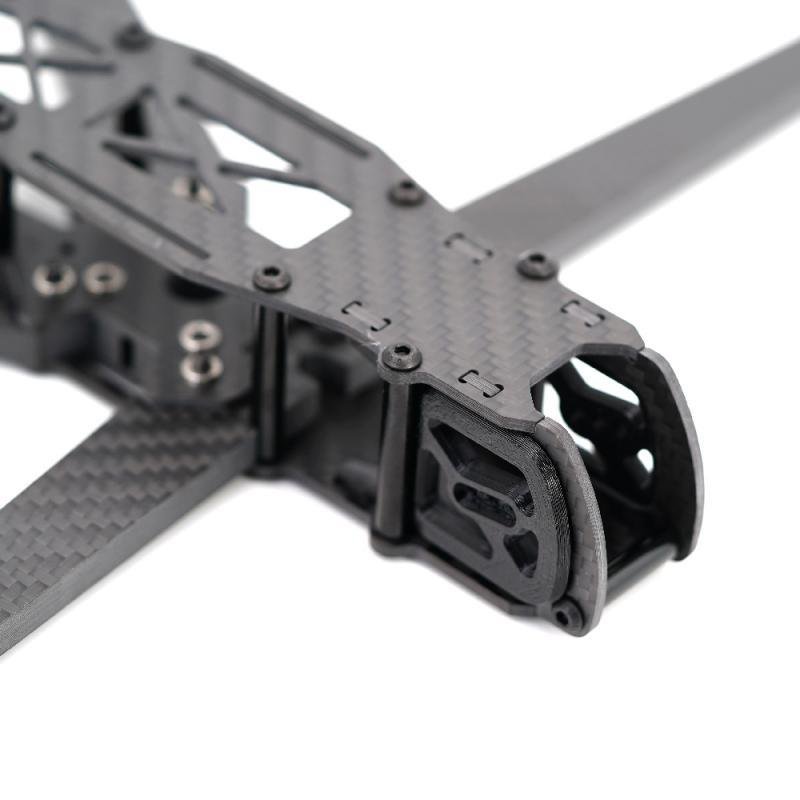

The frame features reinforced 6mm arms and supports stack mounting patterns of 20×20 mm and 30.5×30.5 mm. Compared to the previous version, the FPV camera mount has been modified. The rear section now includes mounting holes for video transmitters with a 20×20 mm spacing.

Thanks to the open-source development, 3D models and accessories are available for easy printing.

Project files

3D printed accessories
