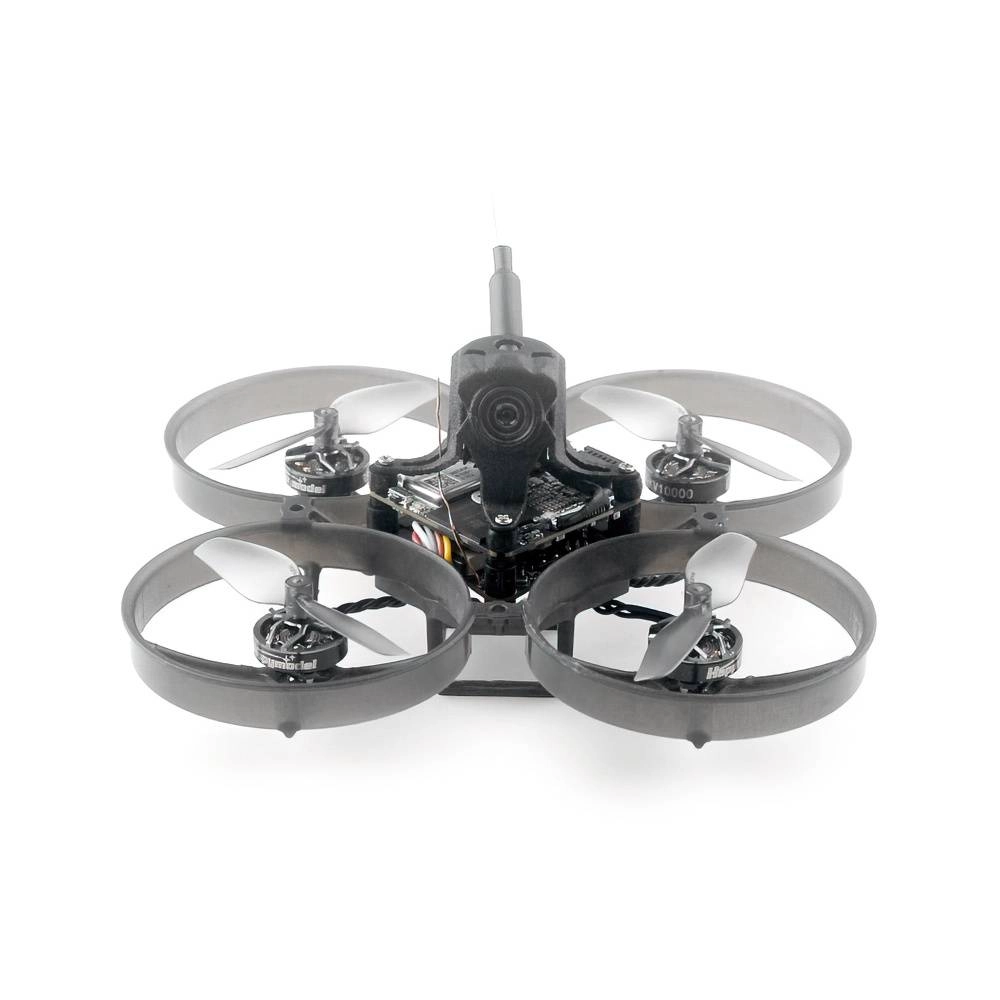

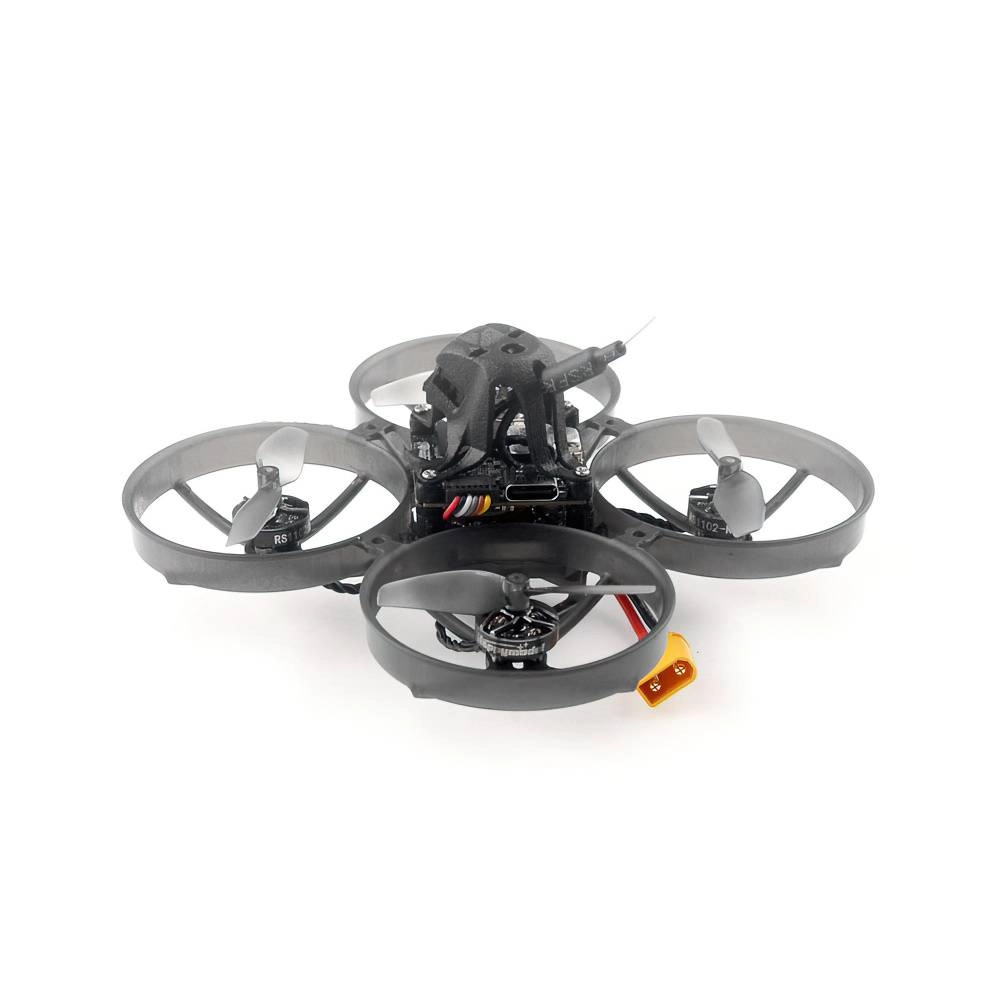

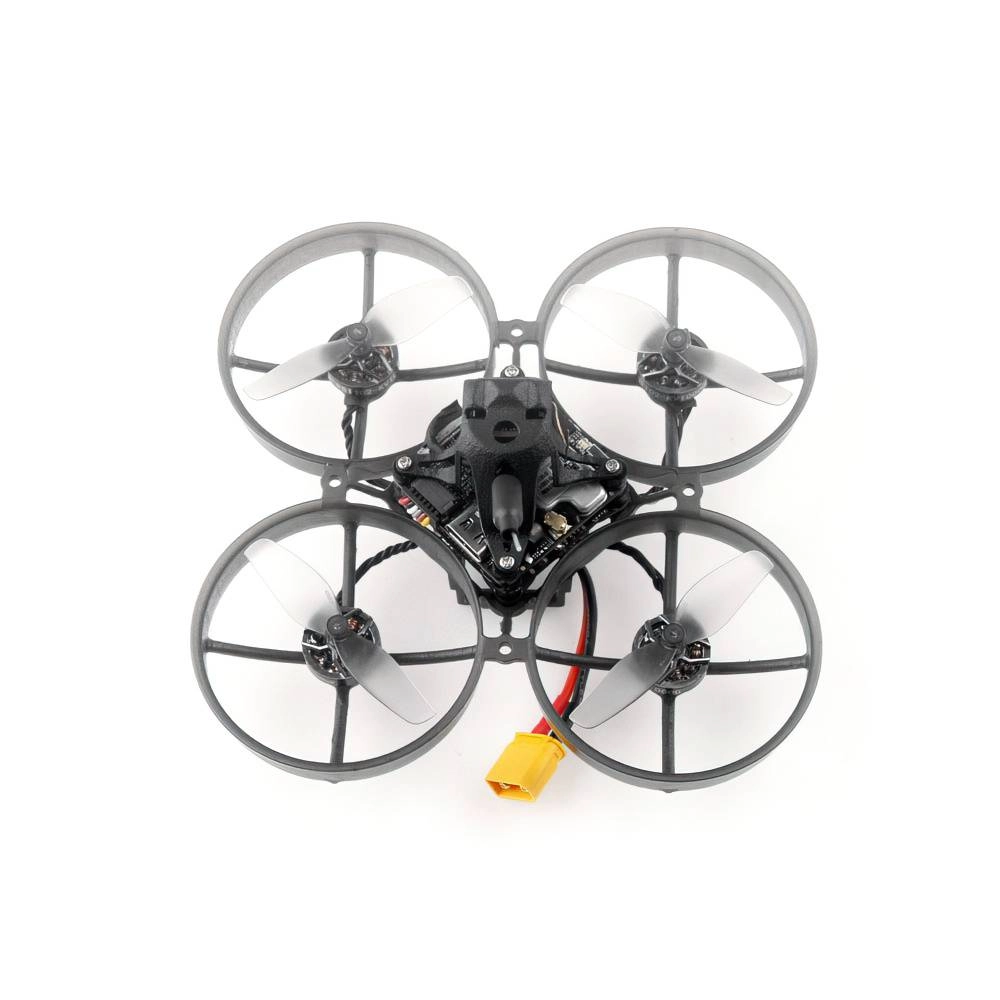

Happymodel Mobula7 80mm Whoop HD w/ DJI O4 – ELRS 2.4GHz

The Happymodel Mobula7 O4 is here! This 80mm micro FPV whoop is equipped with the cutting-edge DJI O4 Air Unit, delivering unbelievable HD FPV footage with ultra-low latency. Powered by the new Happymodel RS1102 KV10000 motors and HQPROP 45mm propellers, it offers a powerful, smooth, and responsive flying experience. Designed for both indoor and backyard FPV adventures, the Mobula7 O4 is the perfect blend of performance, agility, and HD clarity. Take your micro FPV experience to the next level with the Happymodel Mobula7 O4!

VIDEO: HAPPYMODEL #MOBULA7 O4 WITH DJI O4 AIR UNIT LITE MICRO FPV WHOOP FOOTAGE IN THE MORNING

• Ideal for HD FPV Enthusiasts
• 80mm Micro Whoop Design
• Lightweight & Durable
• Optimized Propulsion
• Powerful Motors
• DJI O4 Air Unit

ONBOARD 4-in-1 ESC

• When using 1S battery and high KV 0702/0802 motors, set startup power to 1100/1200
• Firmware: BLHeli_S Bluejay firmware (Factory firmware: Bluejay ESC V0.19)
• Current: 12A continuous, peak 15A (3 seconds)
• Power Supply: 1-2S LiPo/LiPo HV
• Default Protocol: DSHOT300
• Firmware Target: Z-H-30

FLIGHT CONTROLLER

• Built-in: Serial ExpressLRS 2.4G, BMP280 Barometer, 8MB Blackbox
• Built-in Current Meter Sensor: Current meter scale 470
• Built-in Voltage Meter Sensor: Voltage meter scale 110
• Power Supply: 1-2S battery input (DC 2.9V-8.7V)
• MCU: STM32F405RGT6 (168MHz, 1MB Flash)
• Built-in ESC: 12A (each), BLHeli_S 4-in-1 ESC
• Gyro Sensor: BMI270 (SPI connection)
• Mount Hole Size: 25.5mm * 25.5mm

DJI O4 AIR UNIT

• Weight: Air Unit (camera module included): Approx. 8.2g
• Transmission Module: 30×30×6 mm (L×W×H)
• Camera Module: 13.44×12.36×16.50 mm (L×W×H)
• Camera Cable Length: 50mm
• Coaxial Cable: 50mm
• 3-in-1 Cable: 50mm
• Operating Frequency:
  • 5.170-5.250 GHz
  • 5.725-5.850 GHz
  • Operating frequency varies by region. Refer to local regulations
• Transmitter Power (EIRP):
  • 5.8 GHz:<30 dBm (FCC)
  • 5.1 GHz: <23 dBm (CE)
  • <30 dBm (SRRC)
  • <14 dBm (CE)
  • Live View Quality: 1080p at 30/50/60/100fps

MOTOR

• Motor Dimension (Dia. * Len.): Φ13.5mm * 14mm
• Shaft Diameter: Φ1.5mm
• Mode: RS1102 KV10000
• Stator Diameter: 11mm
• No. of Cells (LiPo): 1-2S
• Configuration: 9N12P
• Stator Length: 2mm
• Weight (g): 2.8g

PROPELLERS

• Material: Polycarbonate
• Hub Thickness: 5mm
• Props Dia: 45mm
• Weight: 0.25g
• Shaft: 1.5mm
• Pitch: 0.9

• 1x Happymodel Mobula7 80mm Whoop HD w/ DJI O4 – ELRS 2.4GHz
• 4x HQPROP 45MMX2 bi-blade propellers
• 1x Hardware Kit
• 1x Canopy
