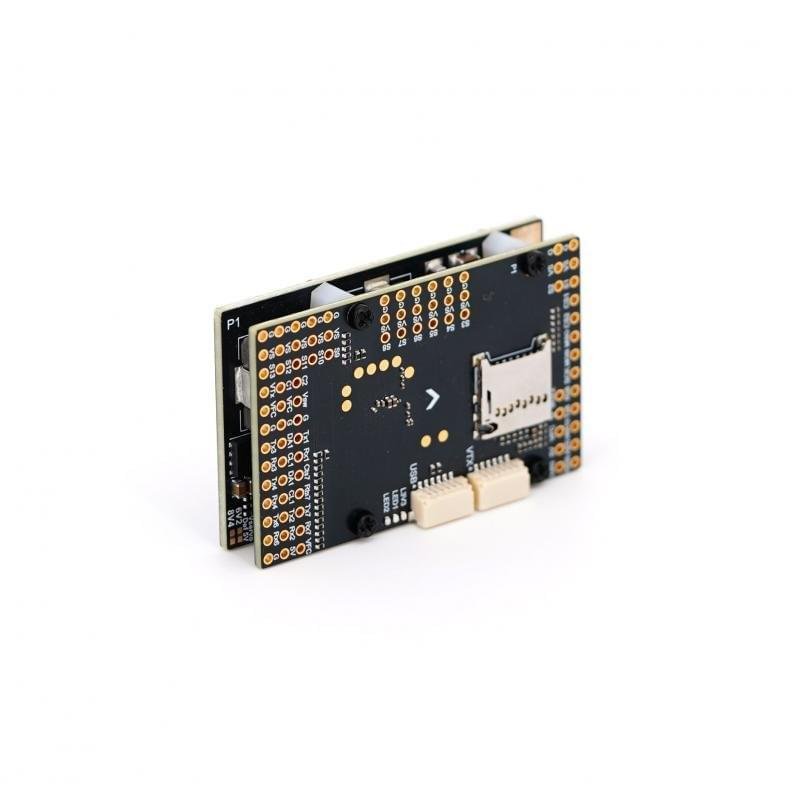

TBS LUCID H7 WING FC

Fixed-wing and VTOL flight controller with powerful microprocessor, dual gyro, unlimited peripheral connectivity and reliable performance

For seasoned wing pilots, affordable high quality flight controllers have been far and between. Shortcomings in either supported software, redundancy on hardware, or price, have made it hard to pick a clear contender for your next project.

Introducing the TBS Lucid H7 Wing FC. Full-featured, versatile, reliable, and affordable. Behold! Our giant list of specs:

SPECIFICATIONS:

• MCU: STM32H743VIH6, 480MHz, 2MB Flash
• Input voltage: 8V-50.4V (3-12S)
• Output power: 8A cont./10A peak BEC. 5V, 6V, 8.4V (selectable)
• Channels: 13x PWM (including LED)
• Gyro: ICM42688 x 2 (SPI1 & SPI4)
• Baro: DPS310 (I2C2)
• Peripherals: 7x UART, 2x I2C, 1x CAN
• Measurements: 6x ADC (Vbat, Current, CB2, CU2, RSSI, AirSpeed)
• High speed ports: MicroSD BlackBox, SPI3 on pin headers
• Analog FPV: Switchable dual camera inputs, AT7456E OSD, 5V/9V/12V support at 5A (selectable)
• Digital FPV: “DJI”-connector with SBUS and OSD communication
• Current sensor: 165A cont. / 240A peak
• FC BEC: 5V 3A cont. (for FC&peripherals)
• FPV BEC: 9V/12V 5A (selectable)
• Dimensions:  54 x 36 x 13 mm

TECH DETAILS:

• Battery Voltage Sensor: 1K:20K (Scale 2100 in INAV,  BATT_VOLT_MULT 21.0 in ArduPilot)
• ADC VB2 voltage divider: 1K:20K
• ADC AirSpeed voltage divider: 20K:20K
• ArduPilot Target: TBS_LUCID_H7_WING
• INAV Target: TBA
• Betaflight Target: TBA

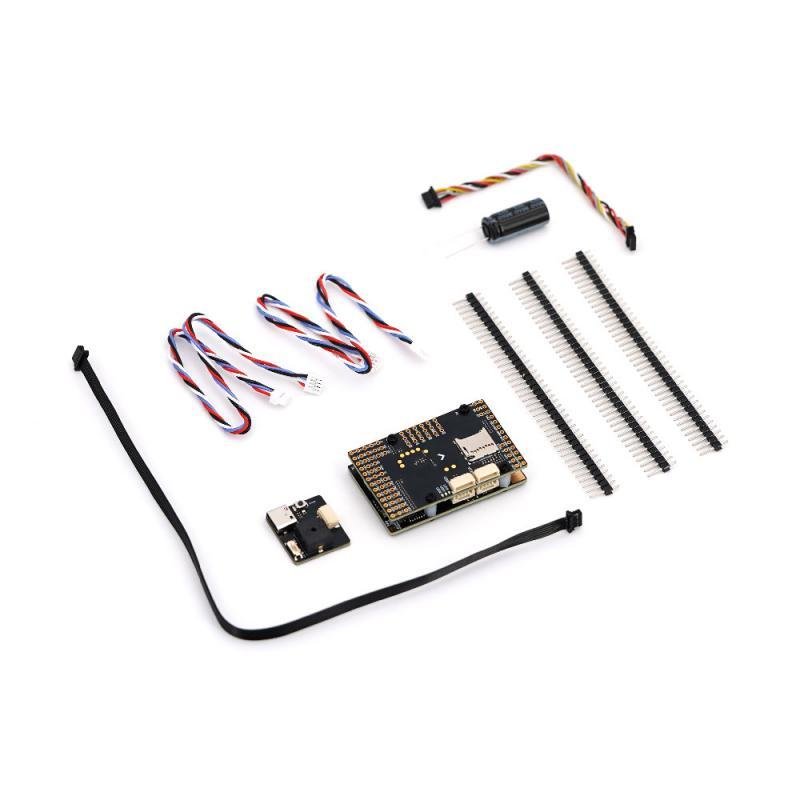

PACKAGE CONTENTS:

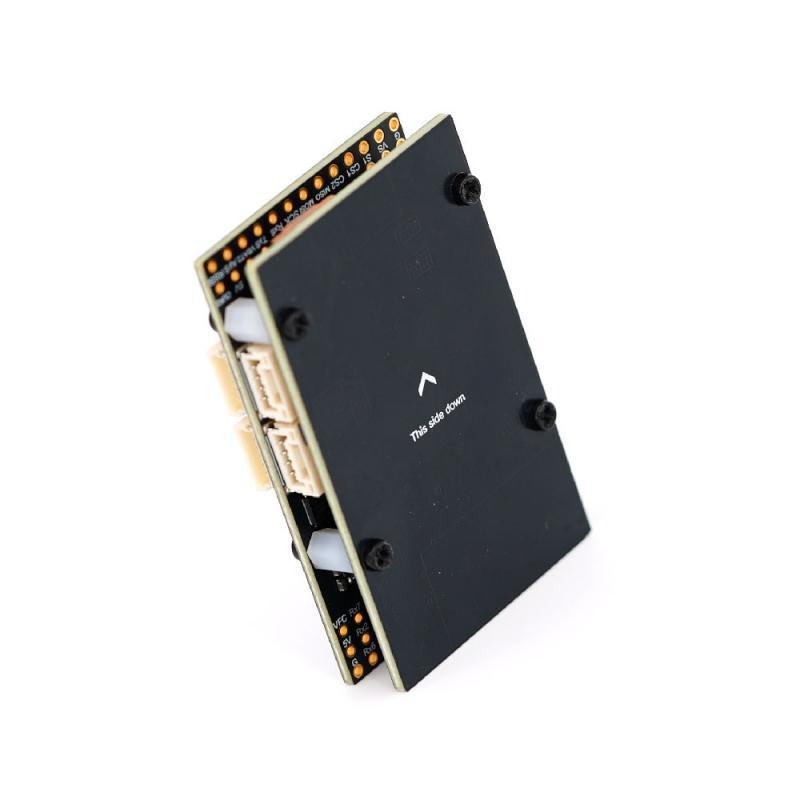

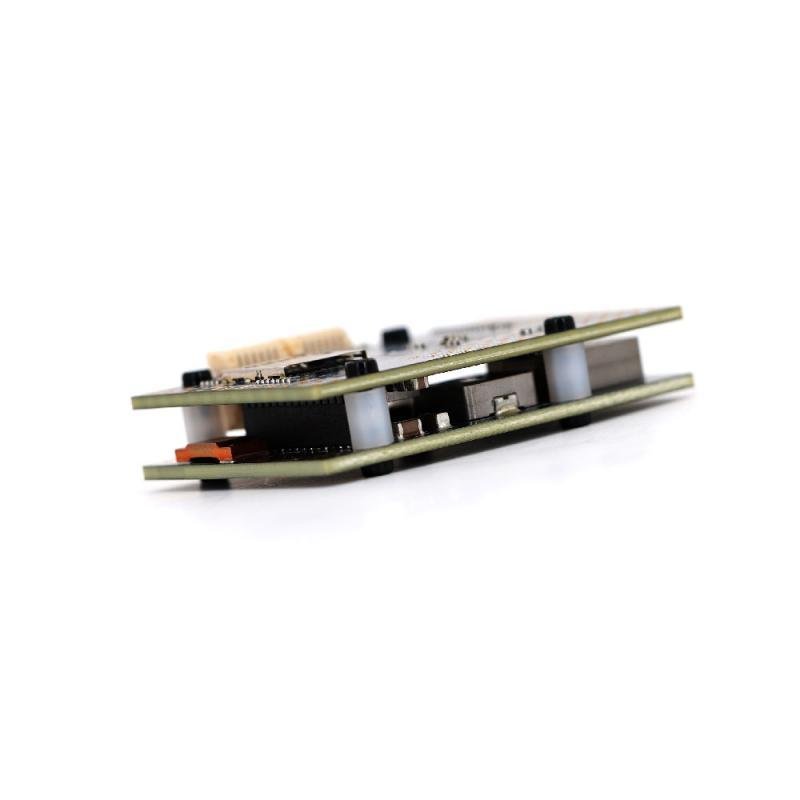

• 1x TBS Lucid H7 Wing FC & PDB (sandwiched boards)
• 1x USB(Type-C) / buzzer extender board
• 1x 10cm JST-SH-6P to JST-SH-6P cable for USB Extender
• 1x 25cm JST-SH-6P to JST-SH-6P cable foror HD Systems
• 2x 20cm JST-GH-4P to JST-GH-4P cable for CAN & I2C port
• 1x 330uF 63V electrolytic capacitor
• 2.54 pin headers x 120 (unsoldered!)
