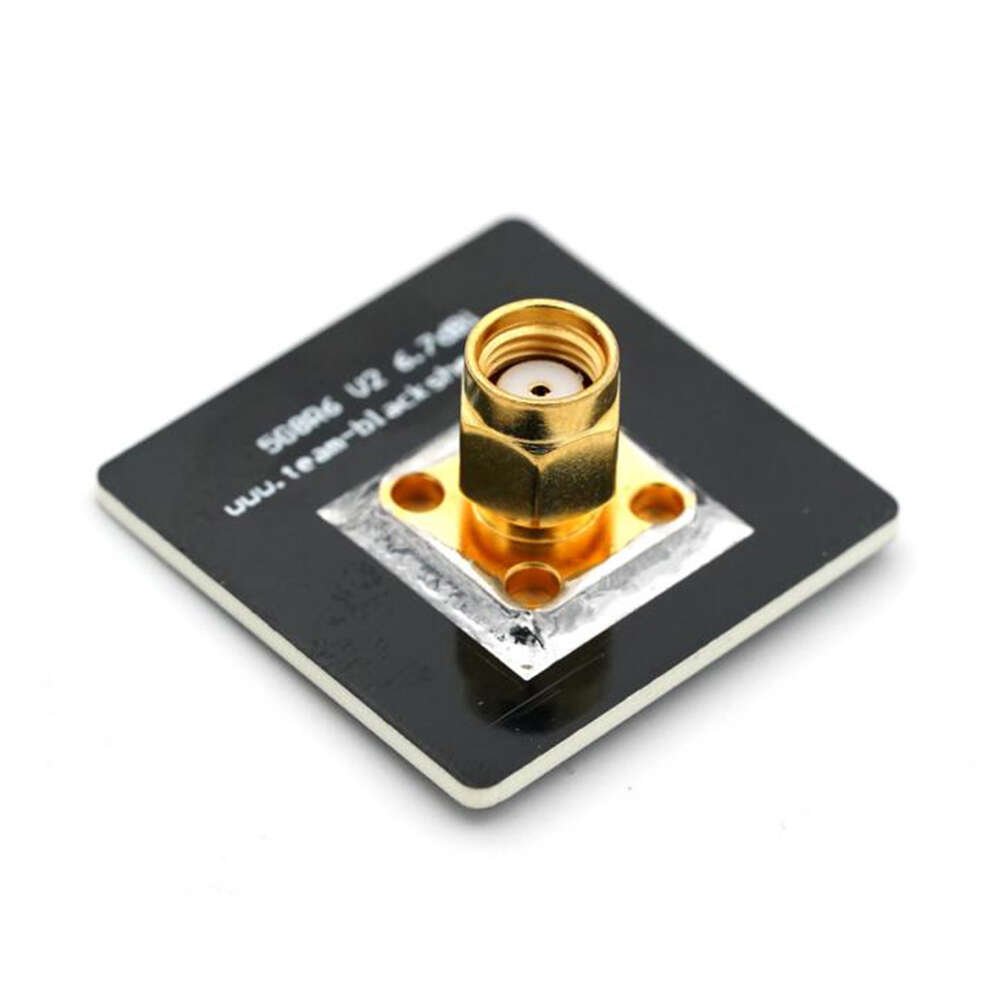

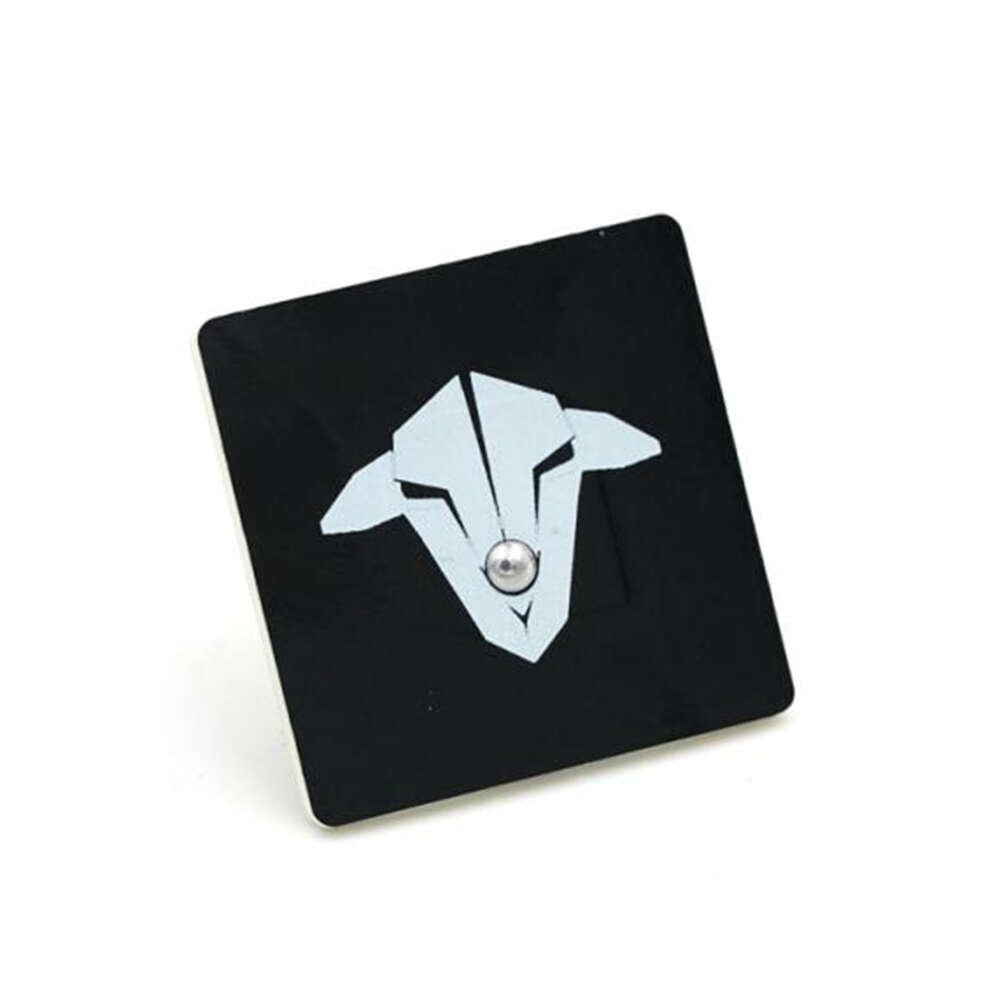

TBS 5G8 RHCP Patch Antenna (SMA)

Manufactured by Team BlackSheep, this antenna is your cheap entry into circular polarization. The 5dbi gain provides enough beamwidth to comfortably mount this patch antenna directly to your goggle-receiver.

The typical range for this antenna is a very comfortable 1.5km on a 200mW transmitter, matching or outperforming all existing Cloverleaf / Skew-Planar-Wheel combinations, but only has a 110-degree coverage. This antenna is light and durable.

Use this antenna for your every day flights in combination with the  Fatshark Dominator 5.8 GHz receiver or any other Video receiver or goggles of your choice.

SPECIFICATIONS:

• 5dBi Gain
• Circular Polarization
• 5700 – 5900 MHz working frequency
• 110° beamwidth
• 35 x 35mm
• SMA connector

PACKAGE INCLUDES:

• 1 x TBS 5G8 Patch Antenna
