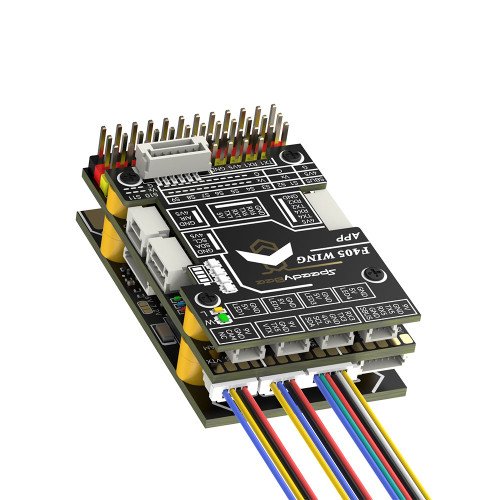

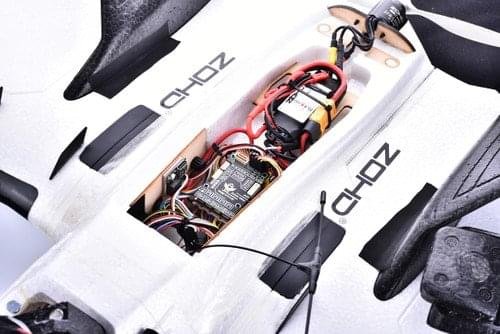

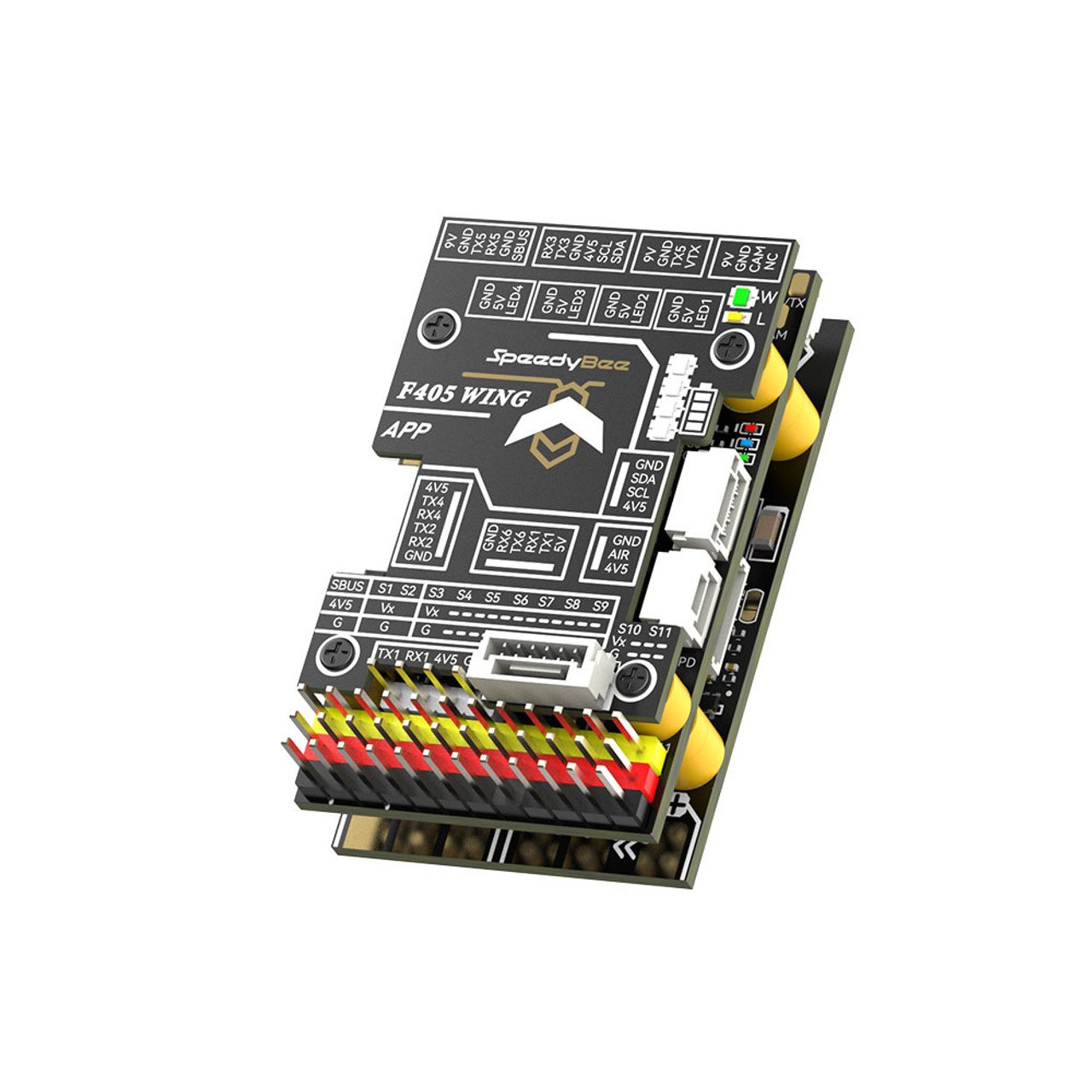

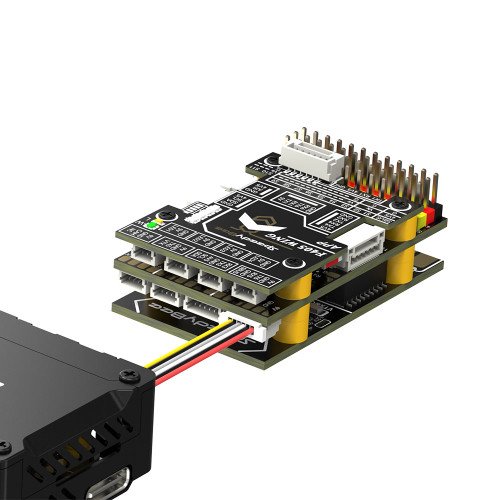

SpeedyBee F405 WING APP Fixed Wing Flight Controller
Original price was: ₹4,799.00.₹4,499.00Current price is: ₹4,499.00. inc GST
Only 2 left in stock
Description
Specifications
| Product Name | SpeedyBee F405 WING FC board |
| MCU | STM32F405,168MHz,1MB Flash |
| IMU(Gyro&Accelerometer) | ICM-42688-P |
| Barometer | SPL06-001 |
| OSD Chip | AT7456E |
| Blackbox | MicroSD Card Slot |
| UART | 6 sets(UART1, UART2, UART3, UART4, UART5, UART6(Dedicated for Wireless board Telemetry connection)) |
| I2C | 1x |
| ADC | 4x |
| PWM | 12x (11 motor outputs + 1 LED signal pad) |
| ELRS/CRSF receiver | Supported,connected to UART1 |
| SBUS | Built in inverter for SBUS input (UART2-RX) |
| LED | 3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red) 1x RGB |
| RSSI | Supported,Named as RS . |
| Supported FC Firmware | INAV:SpeedyBeeF405WING(default) |
| Weight | 8.9g |

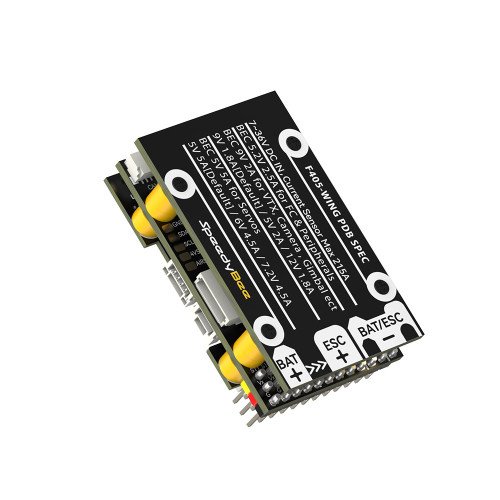

| Product Name | SpeedyBee F405 WING PDB board |
| Input voltage range | 7~36V (2~6S LiPo) |
| Battery Voltage Sensor | Connect to FC board VBAT, 1K:10K |
| Battery Current Sensor | 90A continuous, 215A peak Connect to FC board Current |
| TVS Protective diode | Yes |
| FC BEC output | Output 5.2V +/- 0.1V DC Continuous current 2.4 Amps, 3A Peak |
| VTX BEC output | Output 9V +/- 0.1V DC Continuous current 1.8 Amps, 2.3A Peak Voltage adjustable, 9V Default, 12V or 5V via jumper |
| Servo BEC output | Output 4.9V +/- 0.1V DC Continuous current 4.5 Amps, 5.5A Peak Voltage adjustable, 4.9V Default, 6V or 7.2V via jumper |
| Weight | 11.4g |
| Product Name | SpeedyBee F405 WING Wireless board |
| Wireless Configuration (long press BOOT button for 6 seconds to switch modes) | BLE mode, connect to Speedybee APP |
| Wi-Fi mode, connect to Speedybee APP | |
| LED strip controller (short press BOOT button to switch effects, long press 2 seconds to switch modes) | 4x WS2812 LED strip connectors, adjustable colors and flashing modes |
| Max 5.2V 1.3A, supports around 70pcs 5050 WS2812 LED beads | |
| On-board battery level indicator | 4x RGB indicator LED for battery level display by number of lights |
| Weight | 4.2g |
