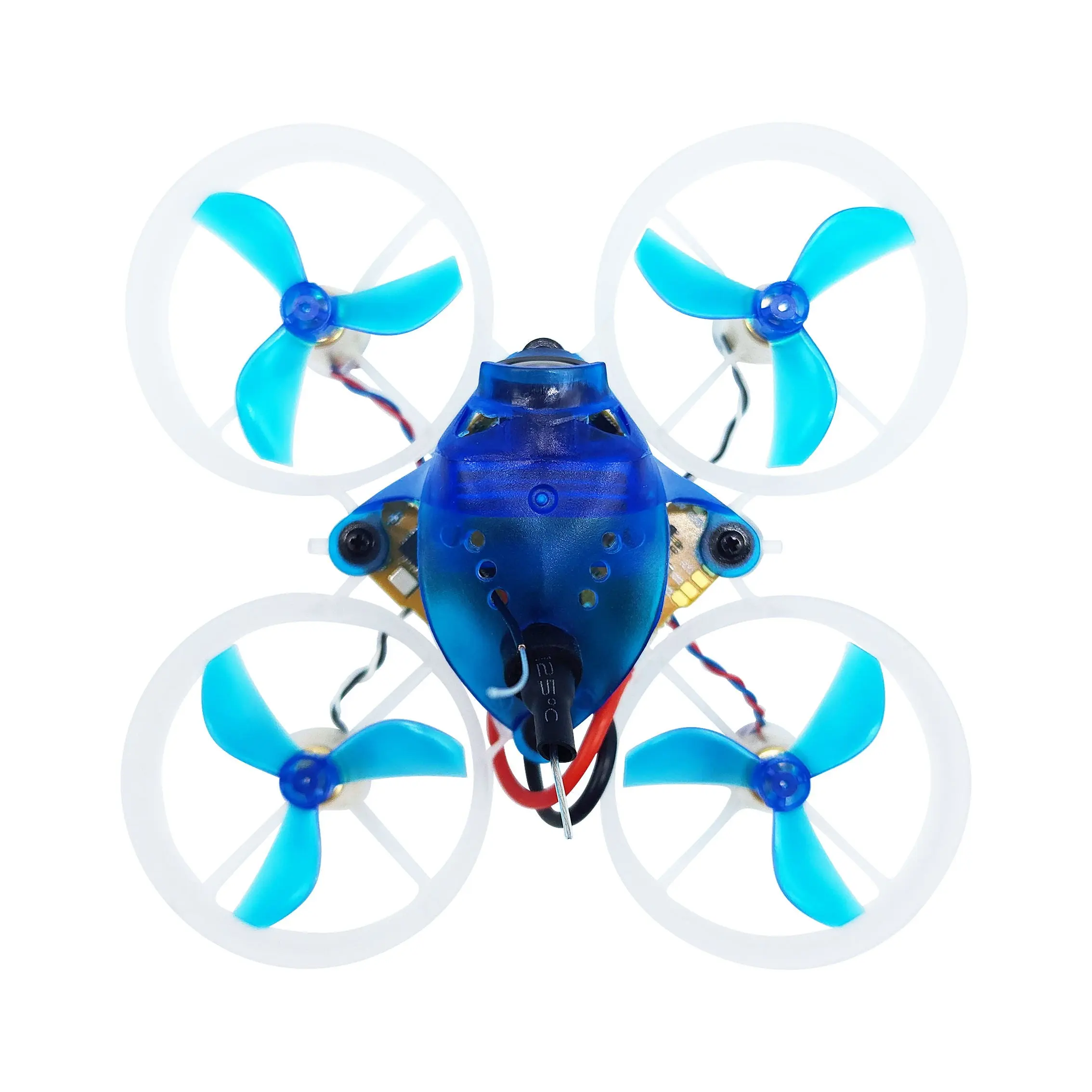

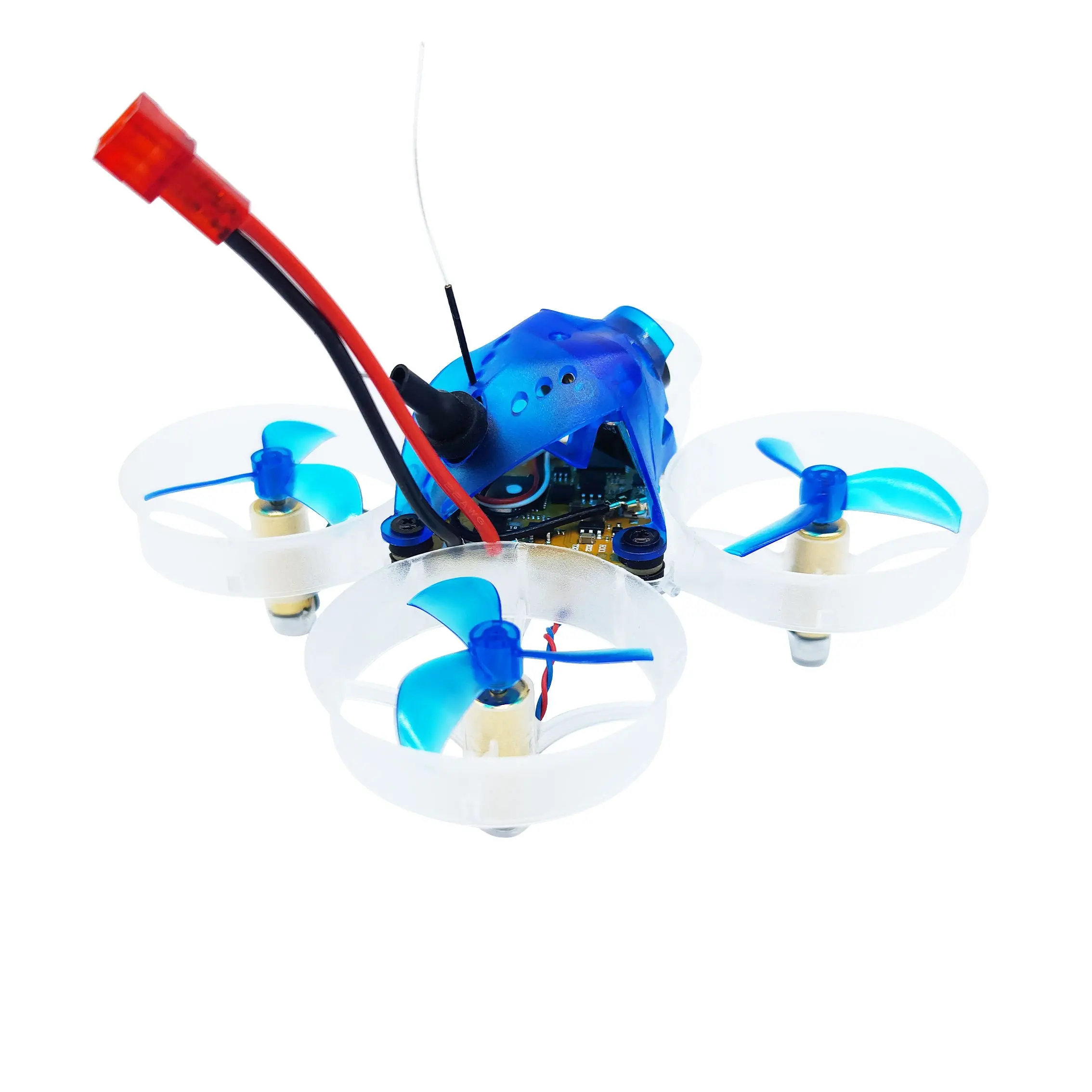

NewBeeDrone AcroBee65 Brushed V2 ELRS BNF with SmartMAX VTX

NewBeeDrone AcroBee65 Brushed V2 ELRS BNF with SmartMAX VTX

Convert it into a DRIFT CAR with our BeeKart kit!

Take your indoor whoop flying to the next level with the NewBeeDrone AcroBee65 Brushed V2 ELRS BNF. This upgraded version of our beloved AcroBee65 now comes with a powerful new VTX system, delivering selectable 25mW, 100mW, and SmartMAX output up to 400mW, allowing for significantly longer range and more stable video transmission. Whether you’re flying in a tiny room or stretching the limits in a parking garage, this micro whoop is ready for anything.

Equipped with a built-in ELRS 2.4GHz SPI receiver, Active Braking brushed ESCs, and turtle mode, the AcroBee65 V2 is a perfect choice for both beginner pilots and seasoned indoor racers. Built on our ultra-durable Cockroach 65mm brushed frame, and paired with Gold Edition 6mm brushed motors, this drone is designed to withstand countless crashes while keeping you in the air.

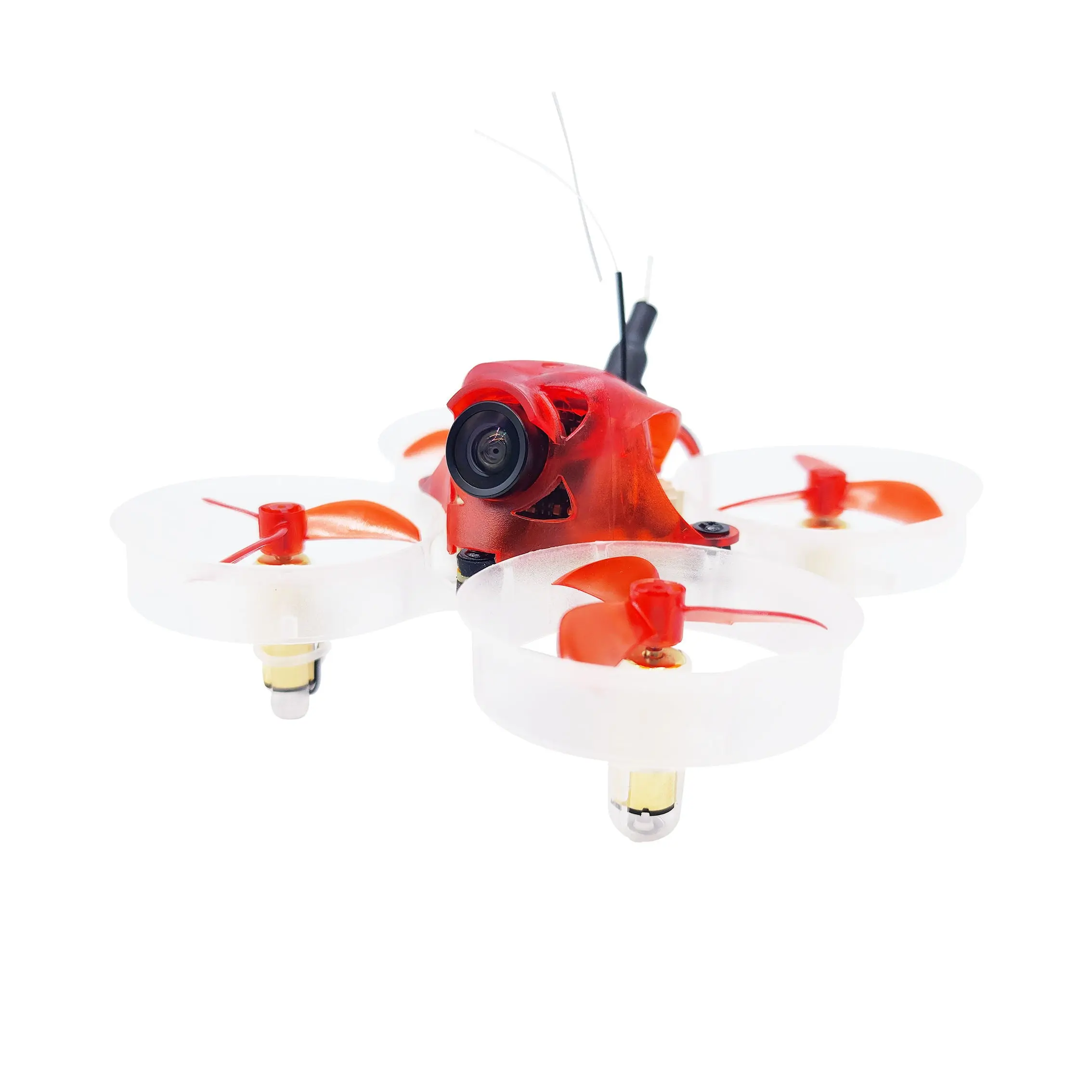

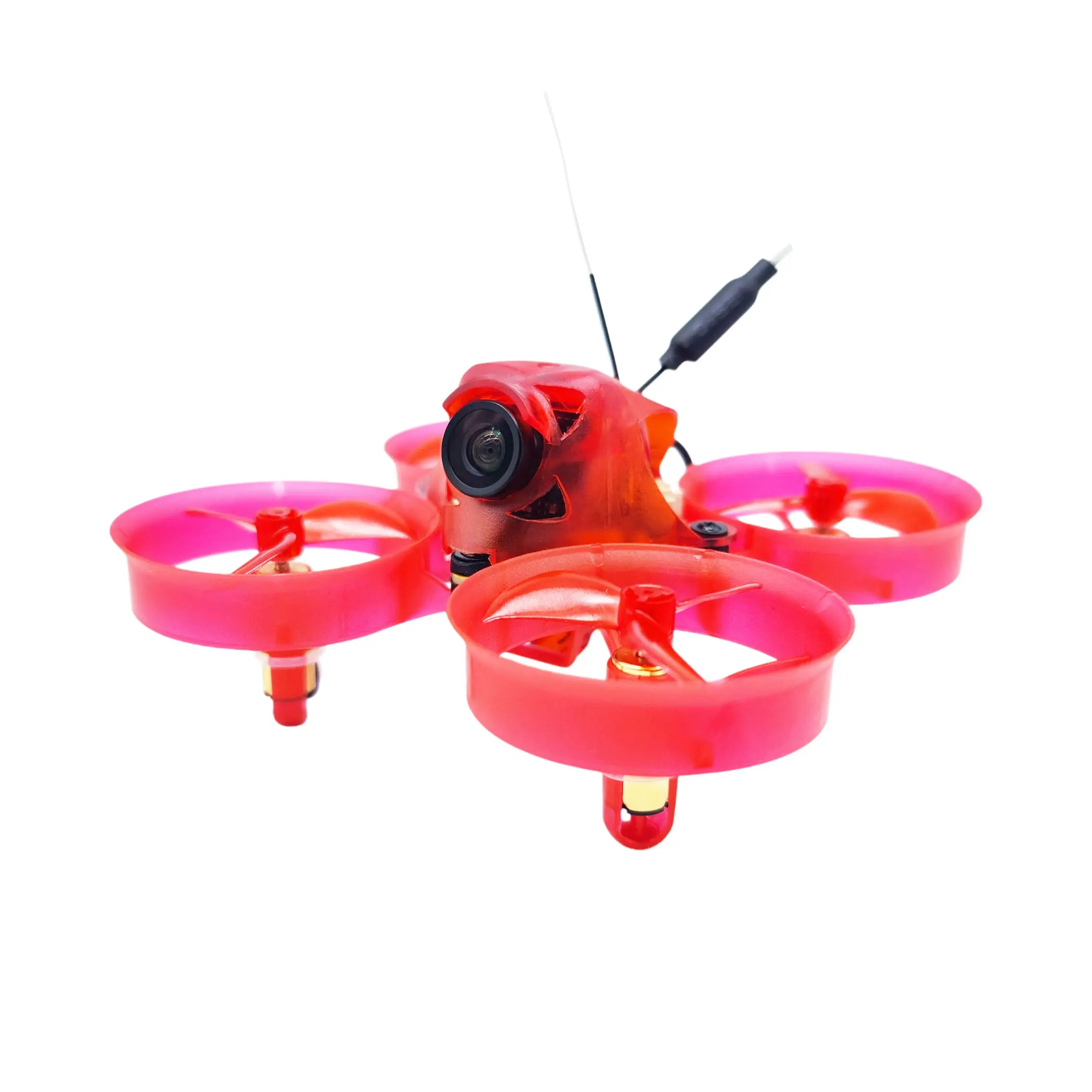

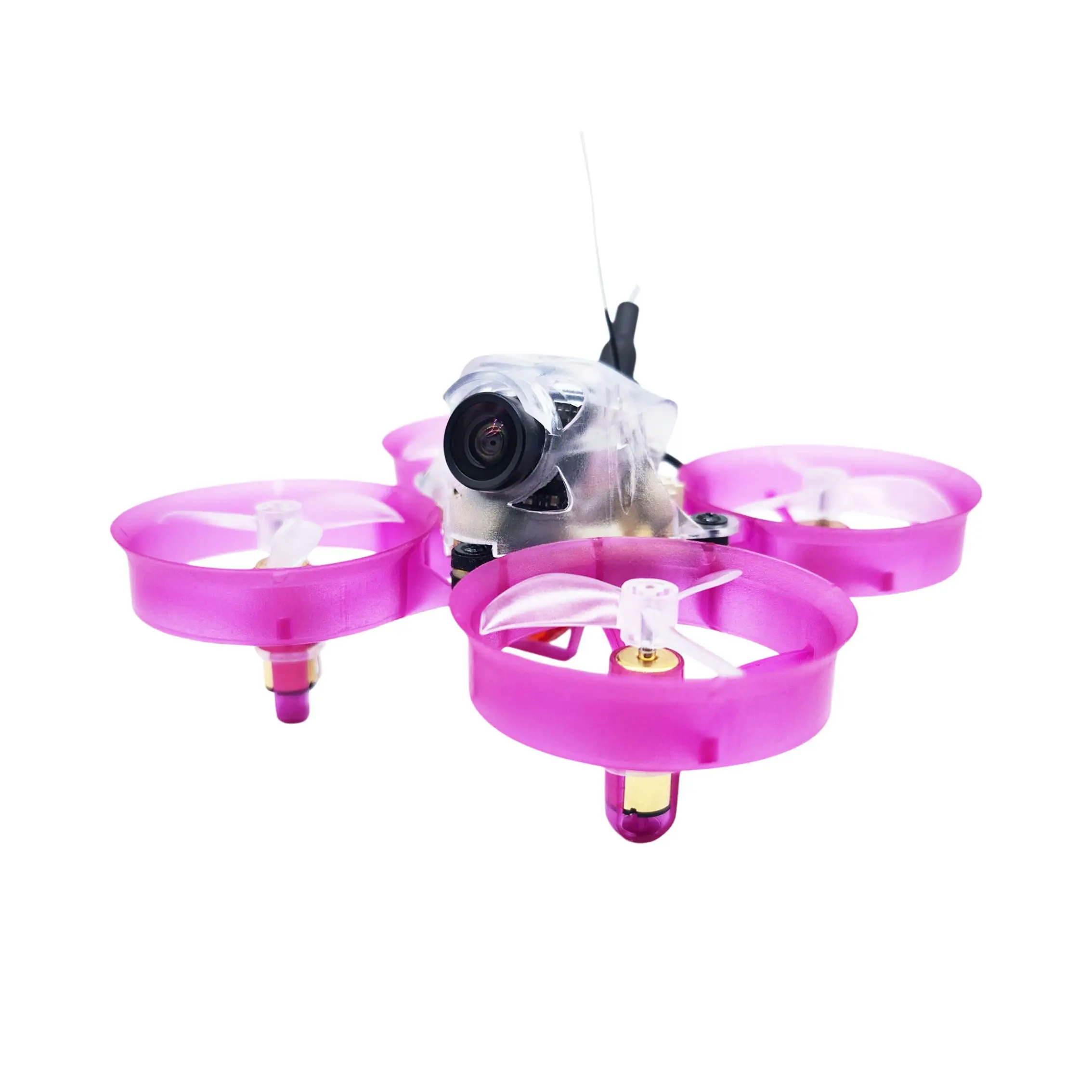

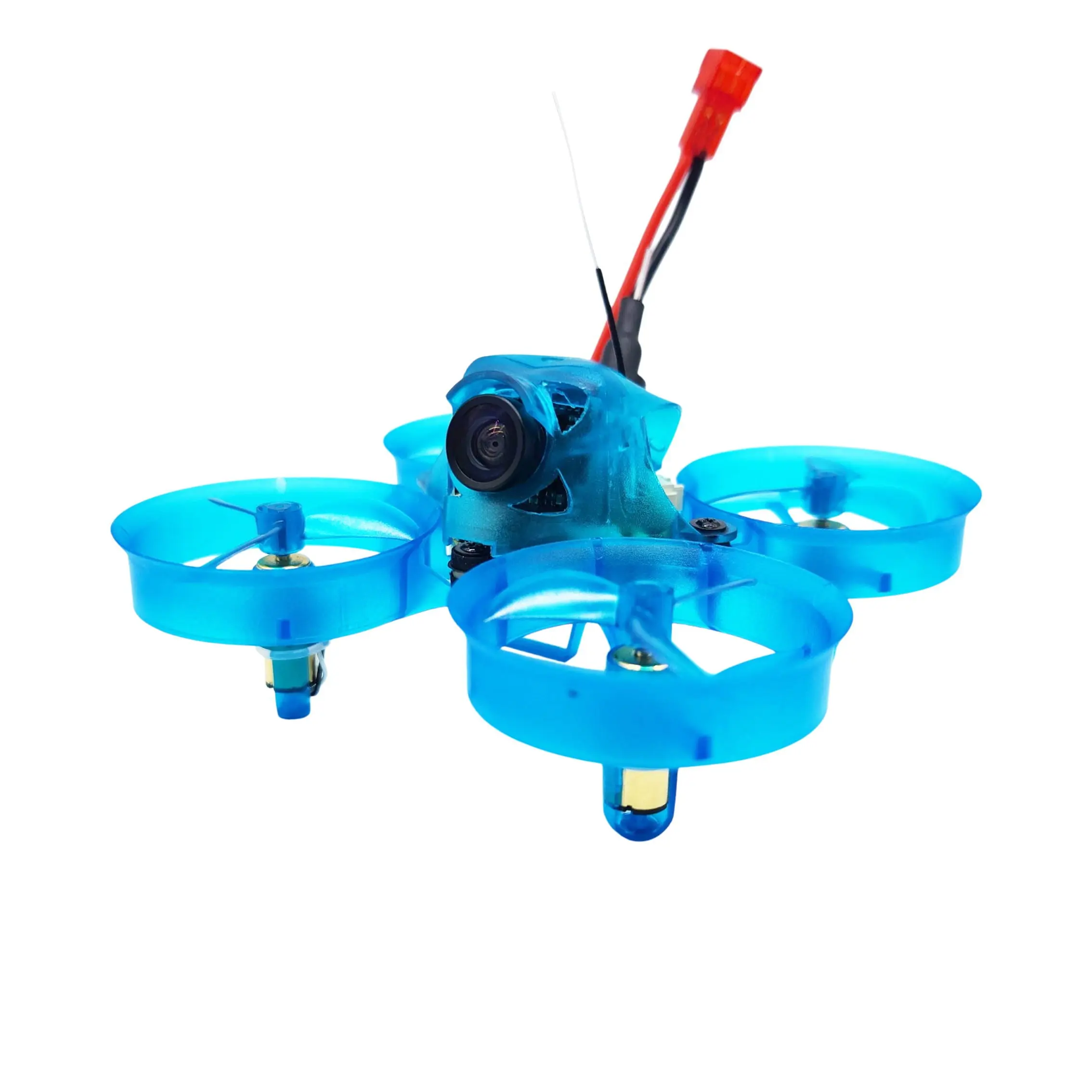

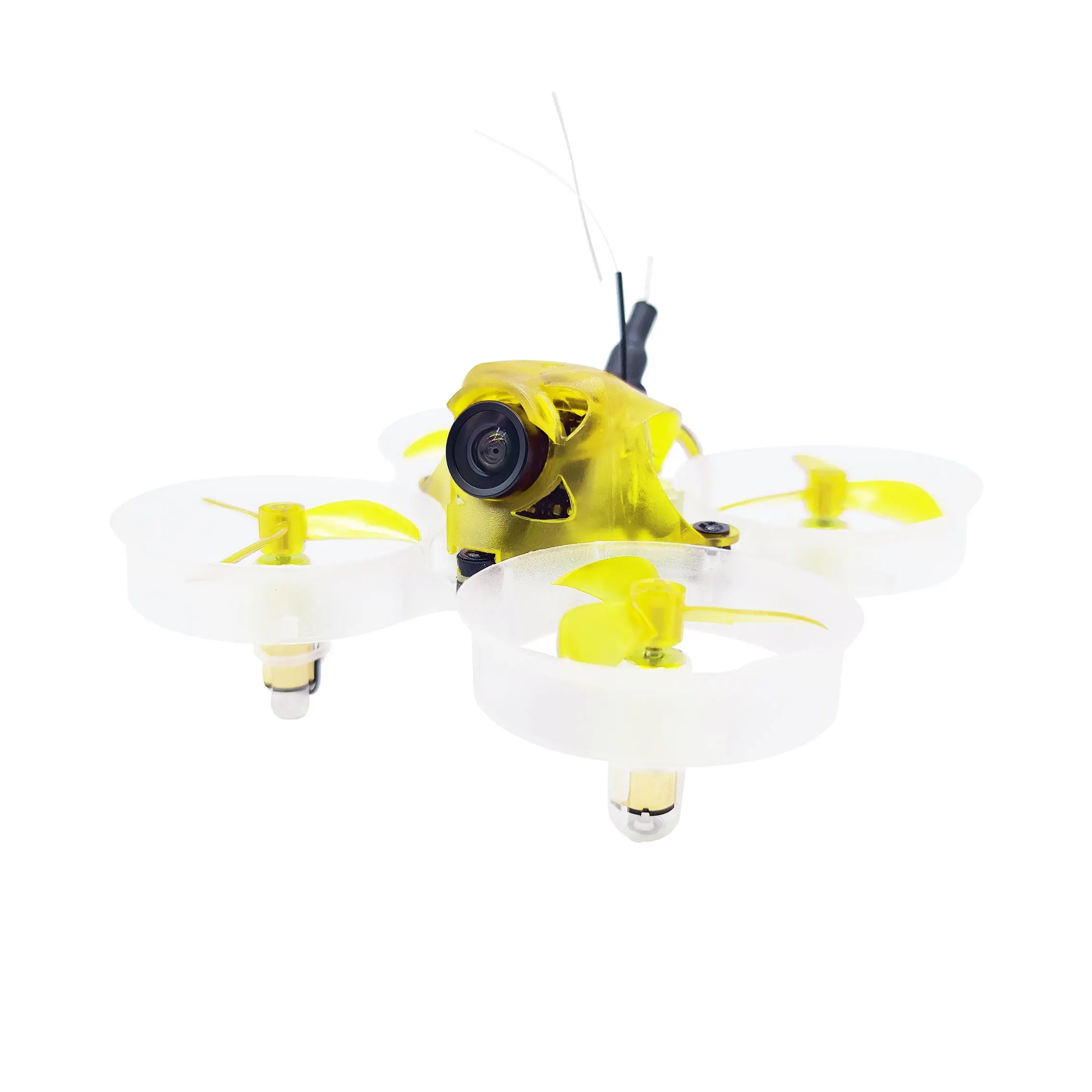

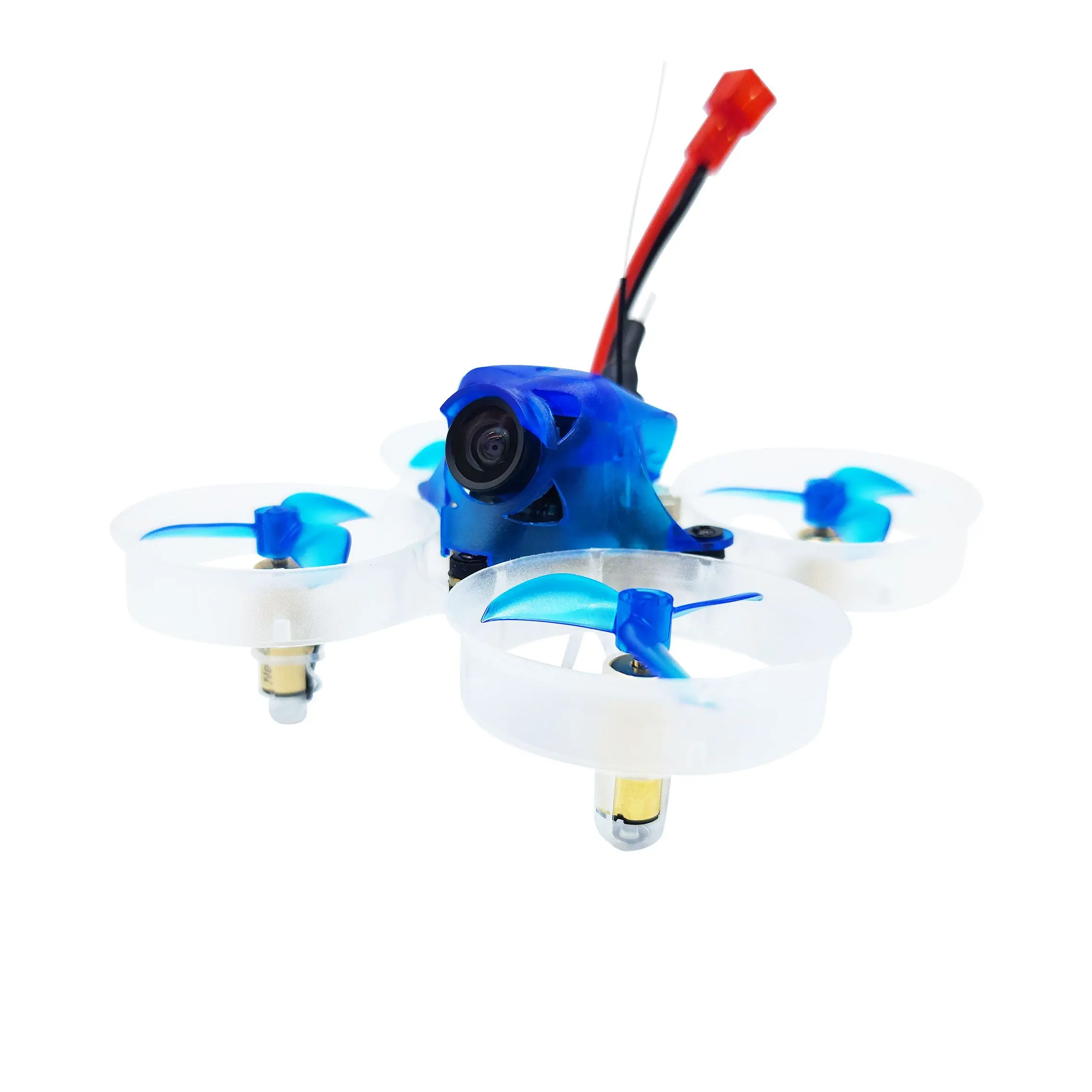

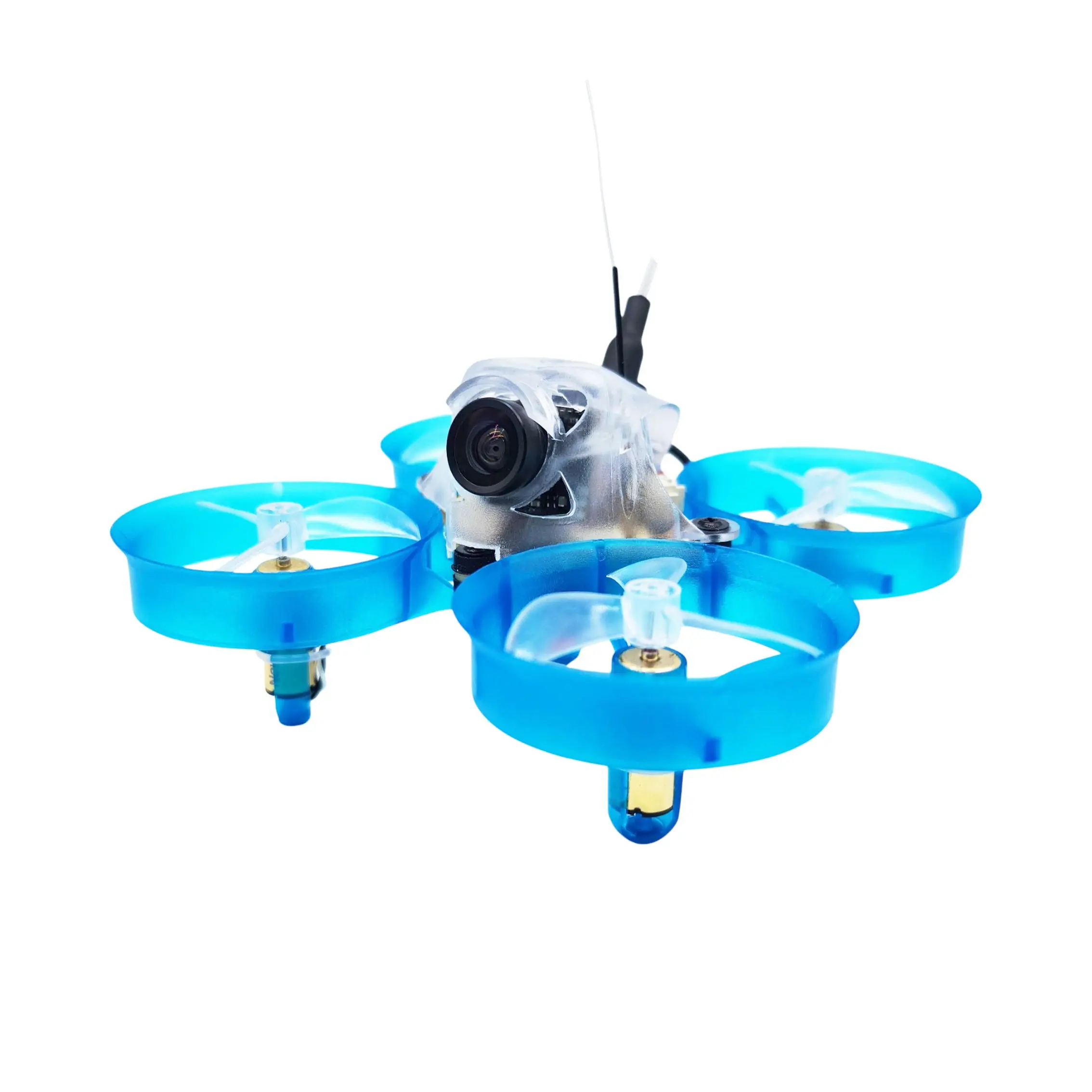

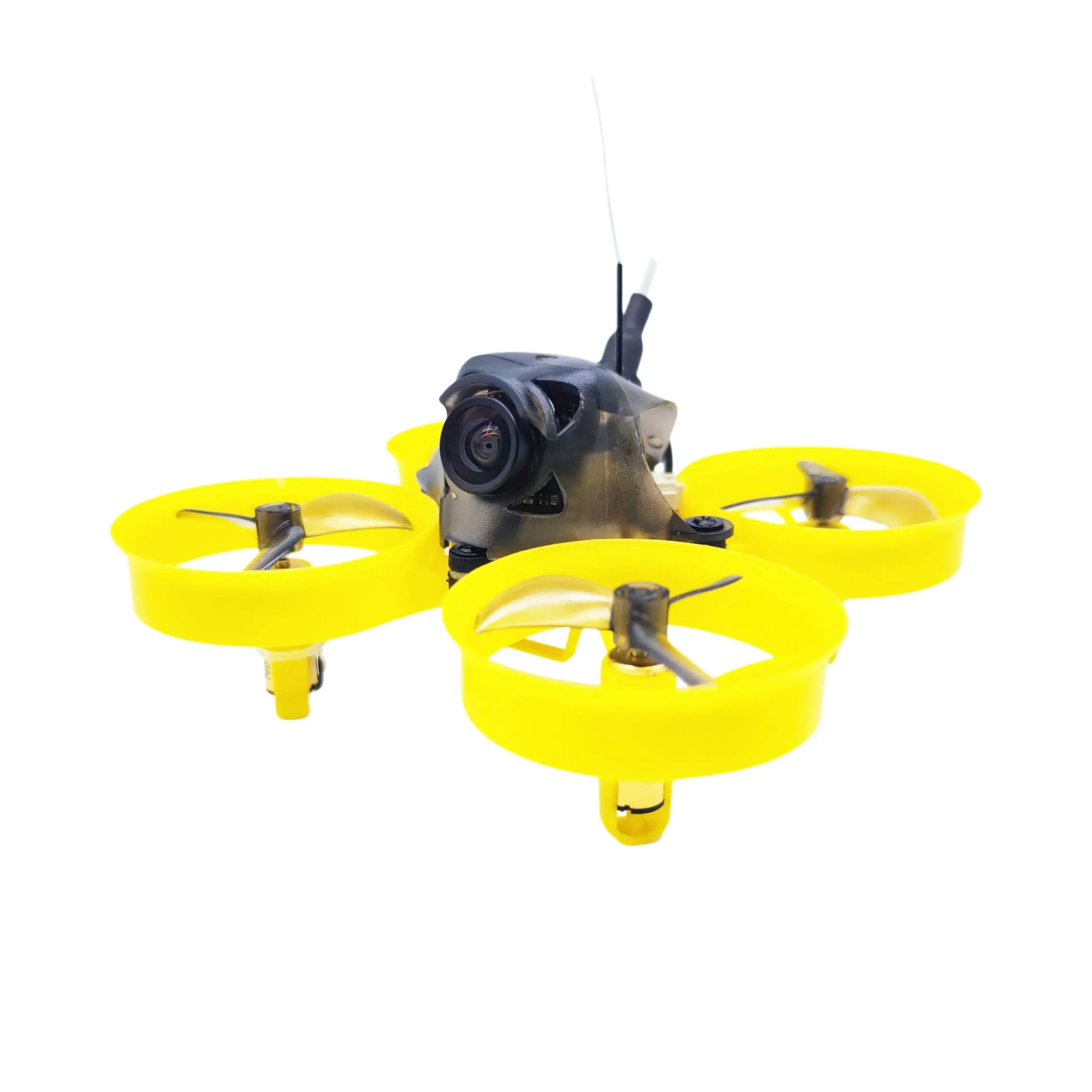

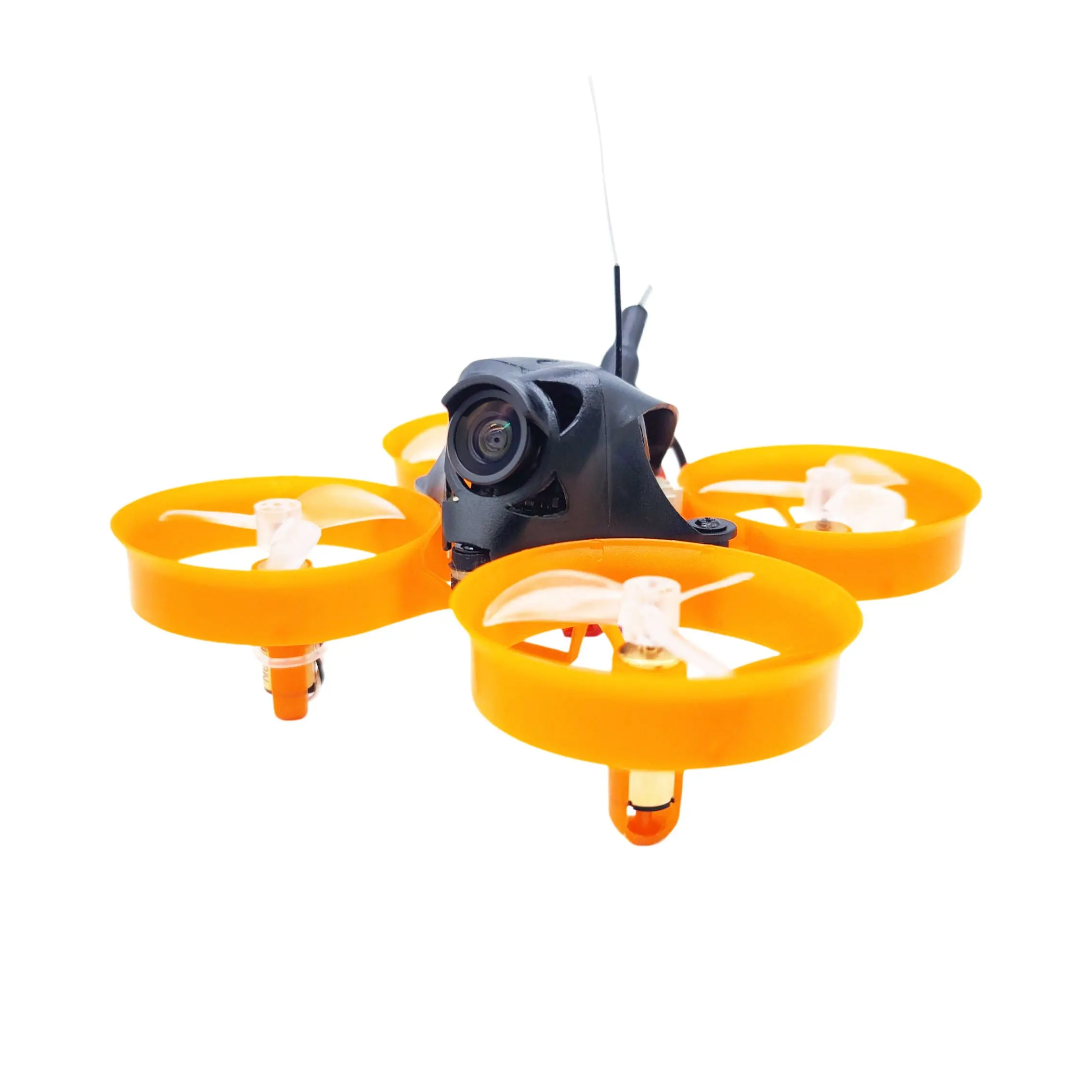

❗ Note About Frame & Canopy Colors:

The AcroBee65 Brushed V2 comes pre-packed from the factory with random color combinations for the frame and canopy. We do not know what color will be included in the package, and unfortunately, we cannot accommodate color requests. Each unit is truly a surprise!

🟡 Key Features:

•SmartMAX VTX Power Control – Select from 25mW, 100mW, or automatic thermal-based boost up to 400mW.

•Built-in ELRS 2.4GHz Receiver – SPI-based, supporting ELRS 3.0 and above for low-latency, long-range control.

•Turtle Mode – Flip your drone over after a crash without walking over to rescue it.

•Active Braking ESCs – For more precise, locked-in flight feel.

•Cockroach 65mm Frame – Durable, lightweight, and battle-tested.

🛠️ Specifications:

Drone Specs:

•Frame: Cockroach Brushed Super-Durable Frame 65mm

•Motors: NewBeeDrone BDR Gold Edition 6mm Brushed

•Propellers: Azi Tri-Blade Micro Props 31mm – 0.8mm Shaft

•Canopy: Goober Canopy (Multi-color options)

•Camera: BeeEye C03 FPV Camera

•VTX: Adjustable 25mW / 100mW / SmartMAX (Up to 400mW)

•Weight without battery: 21.2g

•Weight with battery: 28.8g

•Recommended Battery: Nitro Nectar Gold 300mAh 1S

•Connector: PH2.0 Gold

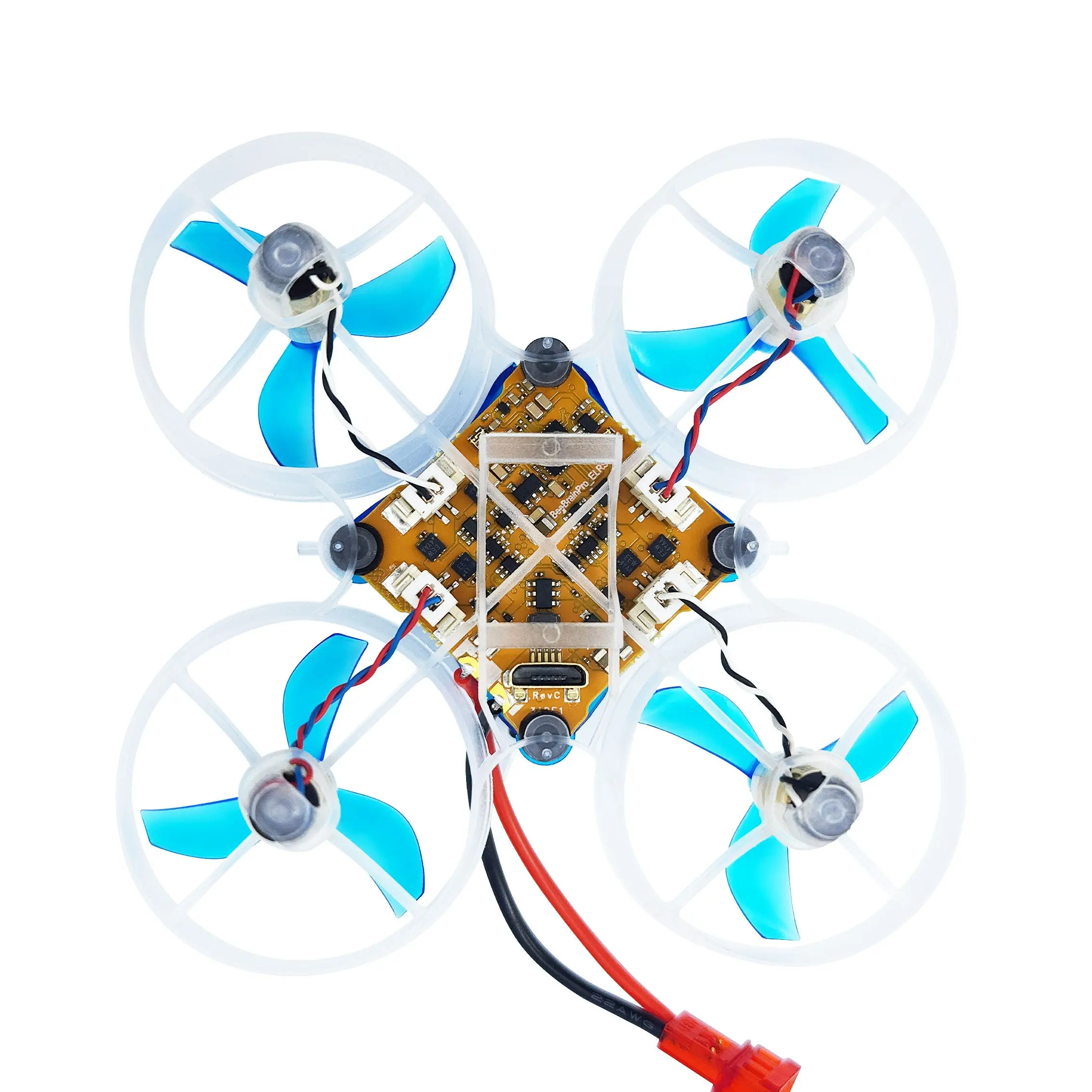

Flight Controller Specs: Link

•MCU: STM32F411

•Gyro: BMI270

•ESC: 4ch Brushed 12A ESC with Turtle Mode

•Receiver: SPI ELRS 2.4GHz (supports ELRS 3.0 and up)

•Battery Input: 1S

•Dimensions: 29 x 29 x 7.6mm

•Mounting Pattern: 25.5 x 25.5mm

•UART1 / UART2: Free for custom setups

📦 What’s Included:

•1x AcroBee65 Brushed V2 ELRS BNF

•4x Spare Propellers

•1x Set of Grommets & Screws

✅ Firmware Download – Betaflight_4.5.1_BEEBRAIN_BRUSHED_V2

⚠️ Important Notice:

This drone is designed with all NewBeeDrone components. Using third-party parts may result in compatibility issues. Please do not flash new firmware. If needed, use the factory reset in Betaflight Configurator and re-calibrate the accelerometer.

🛡️ For support, contact our team before making any modifications. We’re here to help, but we cannot guarantee performance with non-NewBeeDrone parts.

Check out the BeeKart Videos as well!
