JHEMCU RP4-TD ELRS 2.4GHz True Diversity Receiver

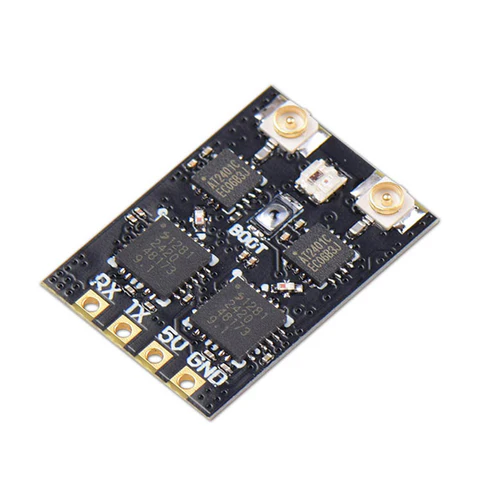

The JHEMCU RP4-TD ELRS 2.4GHz Diversity Receiver is a cutting-edge solution for FPV pilots demanding rock-solid connectivity, low latency, and exceptional range. Featuring dual SX1280 RF chips, true diversity with dual antennas, and integrated dual signal backhaul, this receiver delivers stable and reliable control even in complex flight environments.

With its built-in TCXO high-precision temperature-compensated crystal oscillator, both RF channels share a perfectly synchronized clock for superior signal performance. Weighing just 1.05g (without antennas) and running ELRS V3.2 firmware, the RP4-TD is ready for freestyle, racing, long-range, and cinematic builds.

Features:

• True diversity with dual SX1280 RF chips and dual IPEX antennas for maximum signal reliability
• Integrated TCXO for precise, stable RF clock performance across both channels
• CRSF protocol output with 20dBm telemetry power for long-range, low-latency control
• Ultra-lightweight design at 1.05g (without antenna), perfect for drones and RC aircraft
• Runs ExpressLRS V3.2 firmware, upgradeable for future features

Specifications:

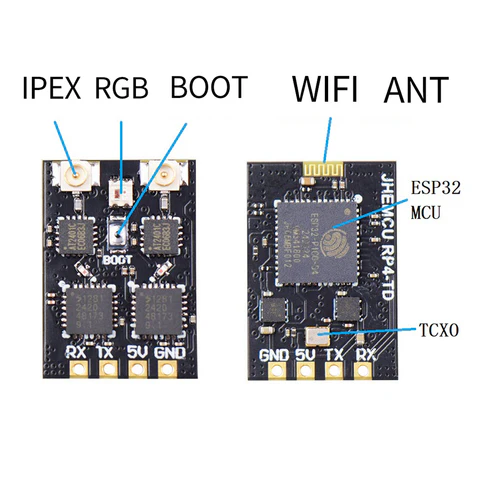

• MCU: ESP32 PICO D4, Dual SX1280(1)
• Antenna: IPEX MHF 1 / U.FL
• Frequency: 2.4GHz (2400–2480MHz)
• Receiver protocol: CRSF (Crossfire)
• Telemetry power: 20dBm
• Input voltage: +5V DC
• Current draw: 120–200mA
• Size: 13.5mm x 19.5mm
• Weight: 1.05g (without antenna)
• Firmware: ExpressLRS V3.2

Package Contents:

• 1x JHEMCU RP4-TD 2.4G Diversity Receiver

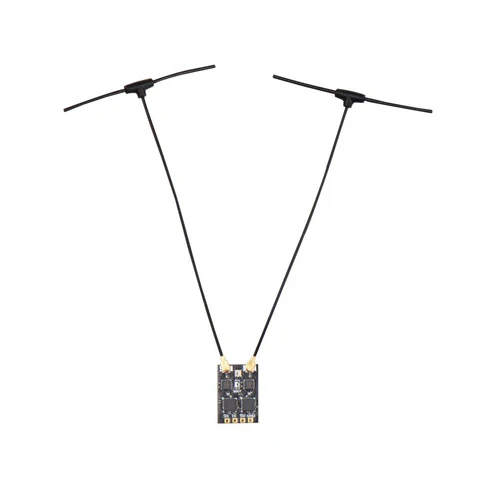

• 2x 2.4G T-Type Antennas
• 1x Heat Shrink Tubing
• 4x Wires
