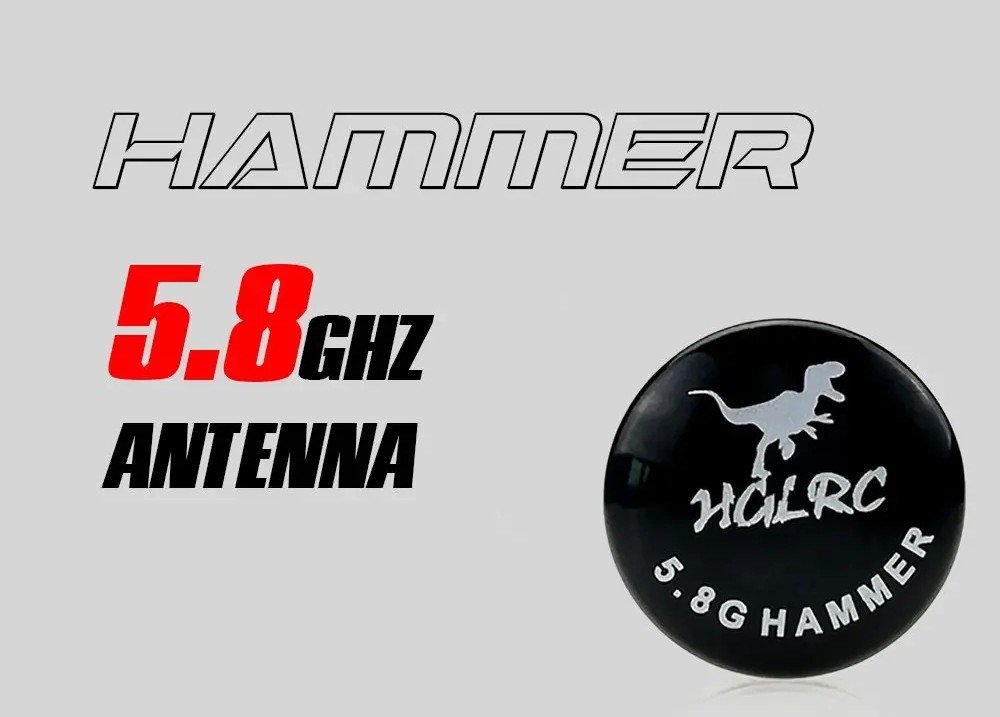

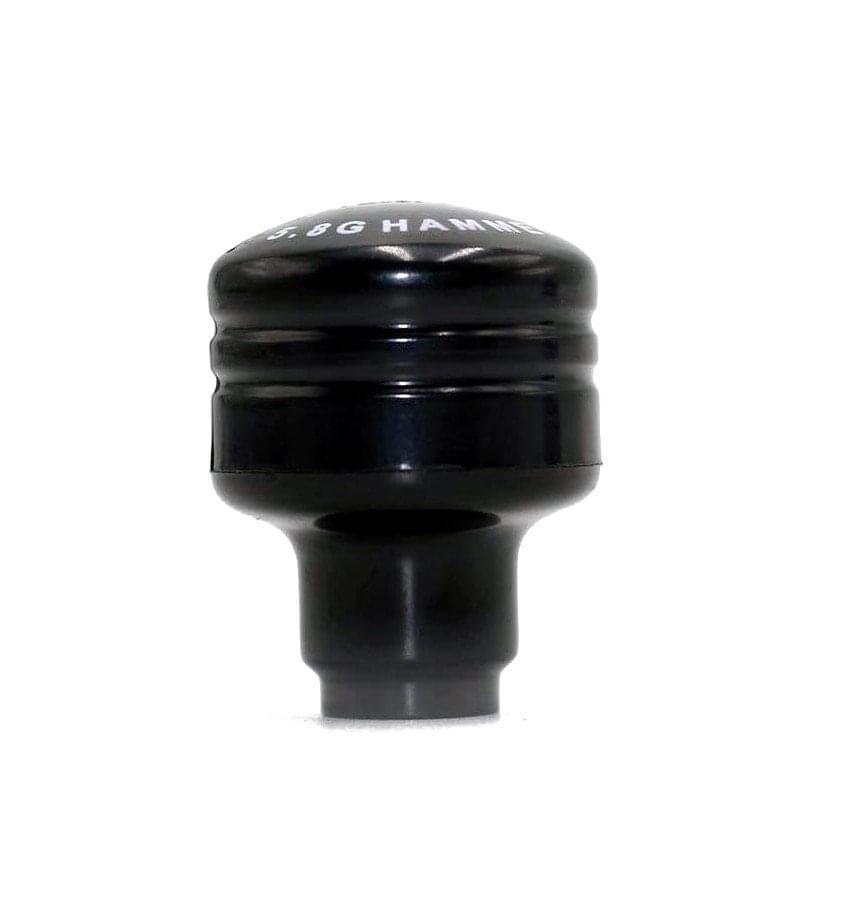

HGLRC HAMMER 5.8G 5dBi MINI ANTENNA SMA STUBBY

Description

Inexpensive antennas HGLRC Hammer Super Mini 5.8G in the form of a “barrel” with a gain of 5dBi.

Characteristics

• Frequency range: 5.5 – 6.0GHz
• Bandwidth: 500MHz
• Gain: 5dBi
• Voltage standing wave coefficient: <= 1.5
• Axial ratio: 0.74
• Power supply voltage: DC 3.0-5.0V
• Current Consumption: <10mA
• Polarization: RHCP
• Noise figure: <1.5dB
• Axial Ratio: 3dBi
• Maximum input power: 5W
• Output: <1.8
• Size: 21 x 28mm
• Weight: 7.4g
