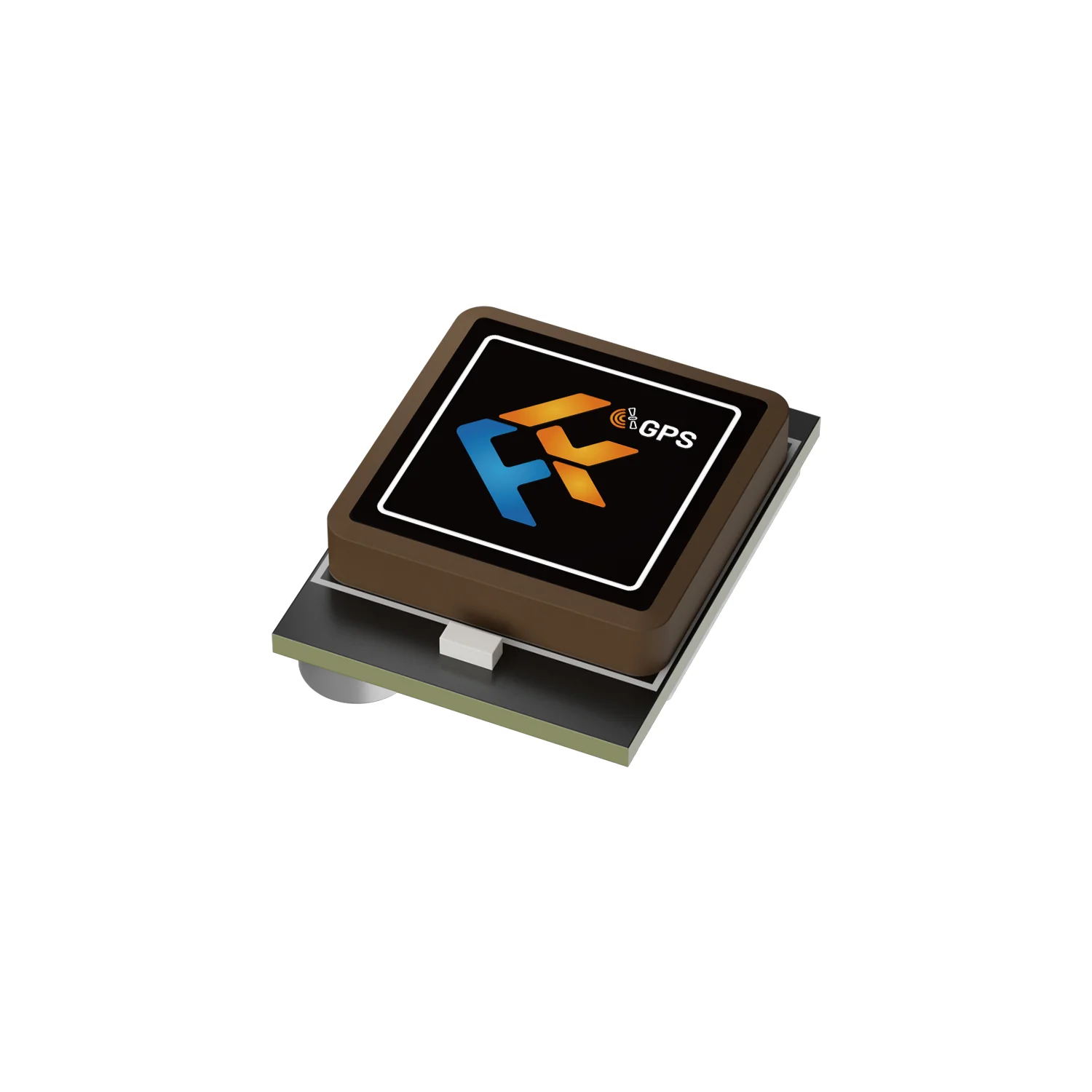

FlyFishRC M10 Mini GPS Module

FlyfishRC-M10 Mini is a GPS that is small in size, fast in speed, and easy to use. It features an 12*12mm RHCP ceramic patch antenna that provides excellent reception and highly stable connectivity.
Spec：
Speed Accuracy: 0.05m/s
Cold Start: 30 s
Hot Start: 1-3 s
Tracking Sensitivity: -167dBm
Input Voltage: 3.3~5.5V (typical value 5V)
Maximum Altitude: 50000m
Maximum Speed: 500m/s
Maximum Acceleration: ≤4G
Baud Rate: 4800-115200bps (recommended 115200bps)

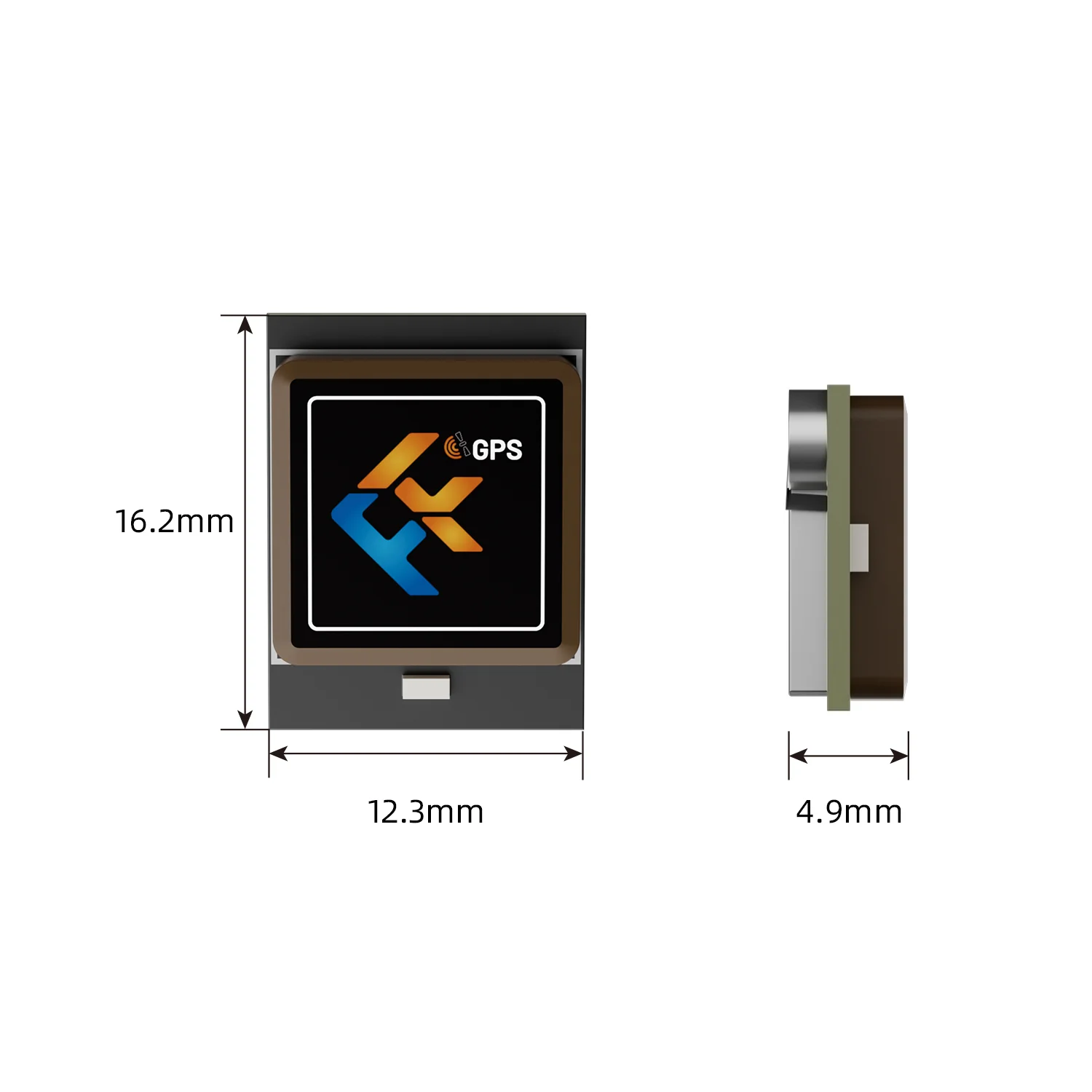

GPS Module Size: L16.2x W12.3x H4.9mm
GPS Ceramic Size: 12*12mm

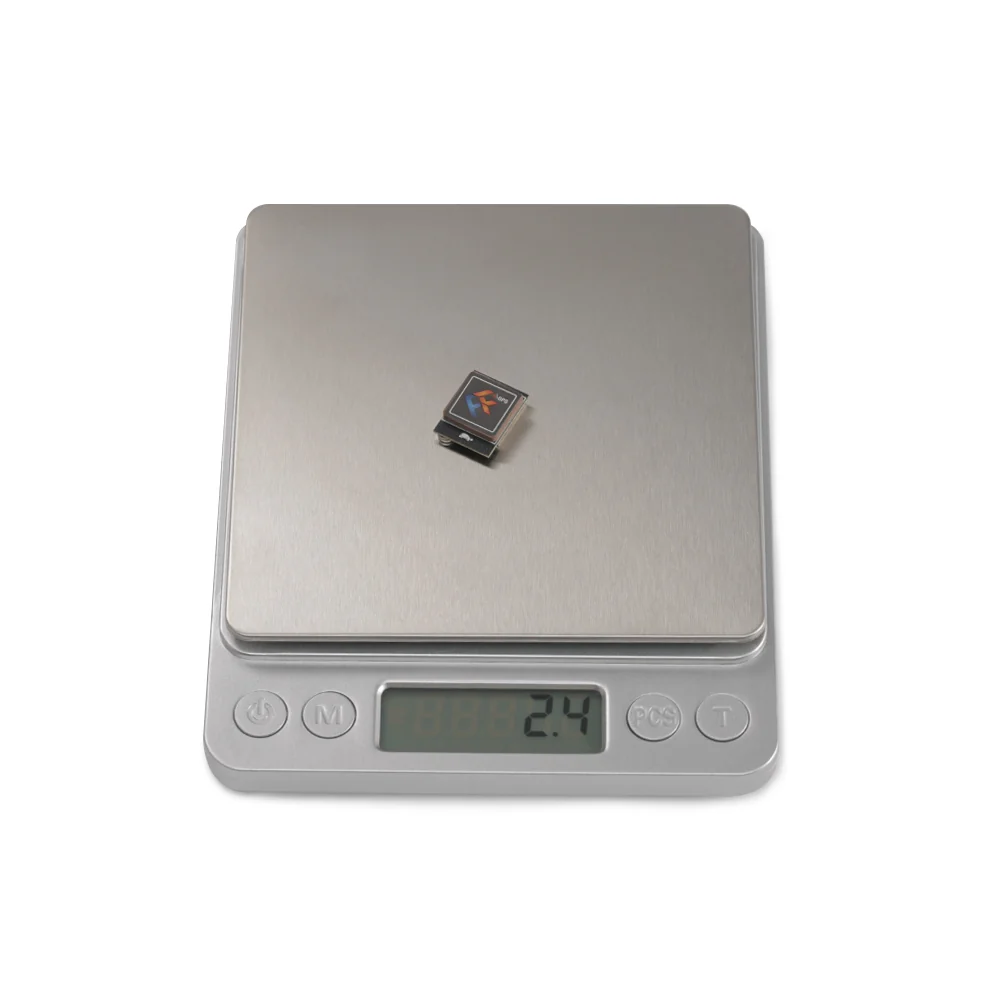

Weight: 2.4g (±0.5g)

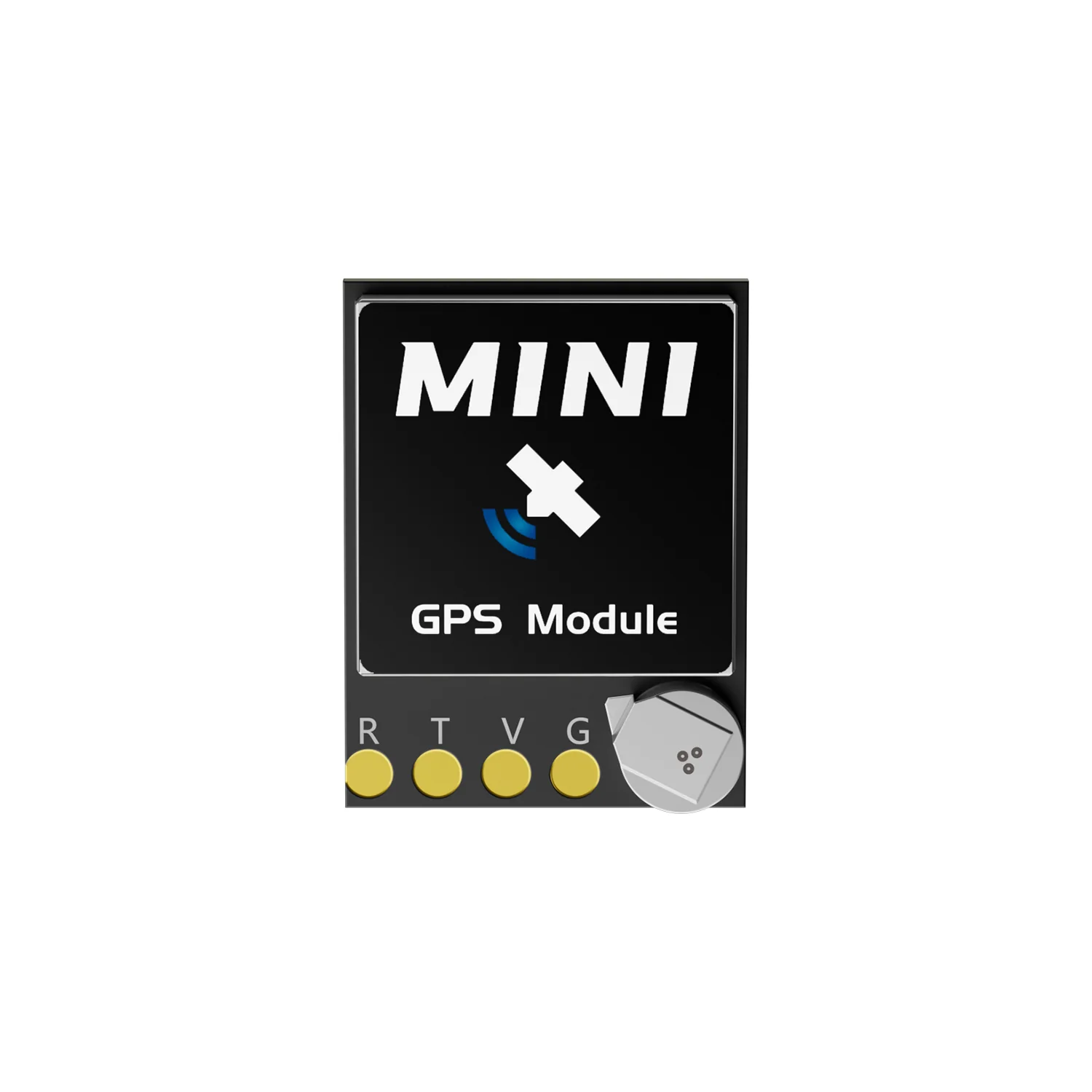

Pin Definition:
VCC: System main power supply, voltage is 5V, current is about 40mA during operation
GND: Ground
RXD: Data input
TXD: Data output

Includes:
1x FlyFishRC M10 Mini GPS Module
1x Battery strap GPS Mount
4x #30 Silicone Cable
1x GPS Manual

Manual Detail Click
