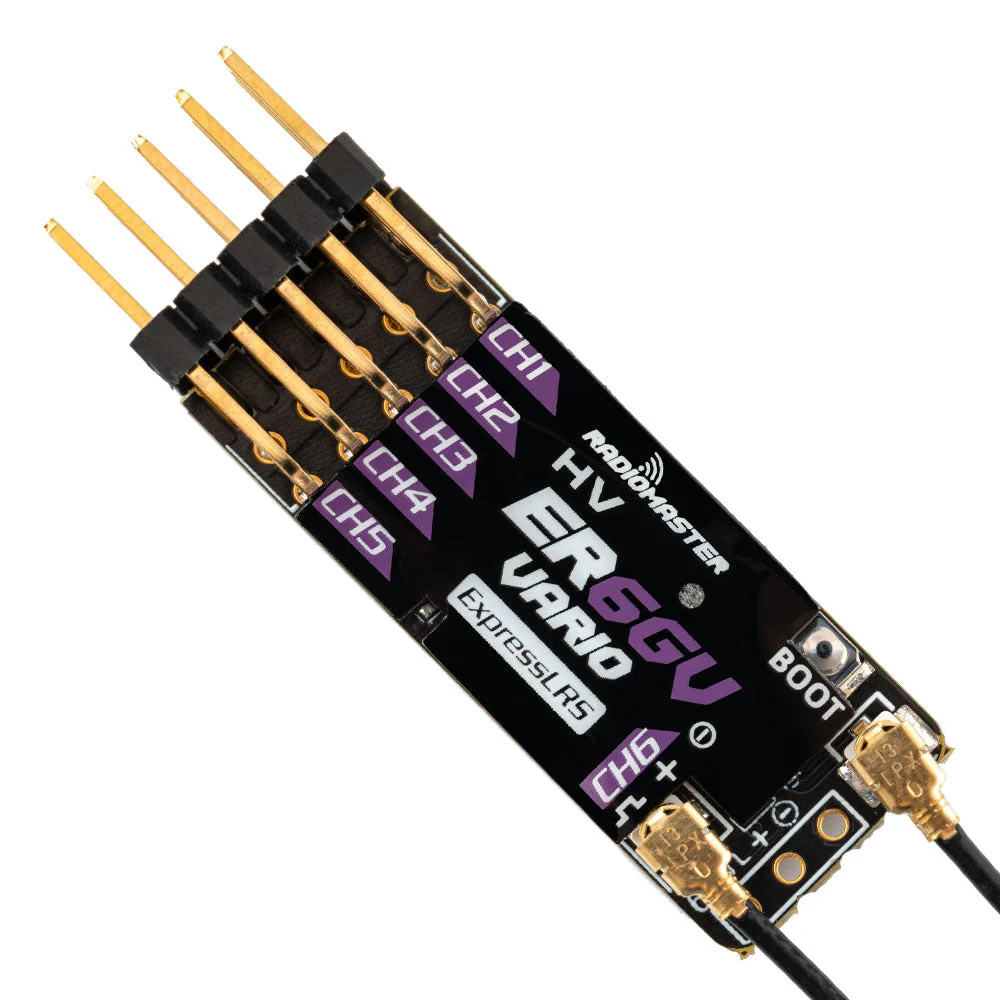

ER6GV 2.4GHz ELRS PWM Receiver

The RadioMaster ER series of PWM receivers is built on the innovative ExpressLRS protocol. It provides high performance, dependable signal, versatile configuration, and quick response time, offering a new experience for your projects and applications.

The ER6G & ER6GV receiver have been specially designed for pilots who require a compact and slim receiver. It can drive up to 6 servos and has built-in receiver voltage telemetry and flight battery telemetry with the ability to automatically detect which voltage input to use. Both ER6G & ER6GV feature a dual-antenna with telemetry power up to 50mw and can work stably with a 1S Lipo receiver battery.

The ER6G Receiver has the same functionality as the ER6GV only without a built in Vario for competitions that prohibit the use of a Vario or simply for users who do not need a vario on their receiver.

Features

• Based on the Revolutionary ExpressLRS System
• High performance, high reliability, flexible configuration, low latency, and strong link quality
• Support 6 PWM Channels
• Optimized ground up PCB design
• Automatically voltage telemetry of external battery voltage or built-in receiver voltage
• ER6GV Receiver is built-in high-precision air pressure sensor (Vario)
• Supports Wi-Fi updates and WEBUI configuration

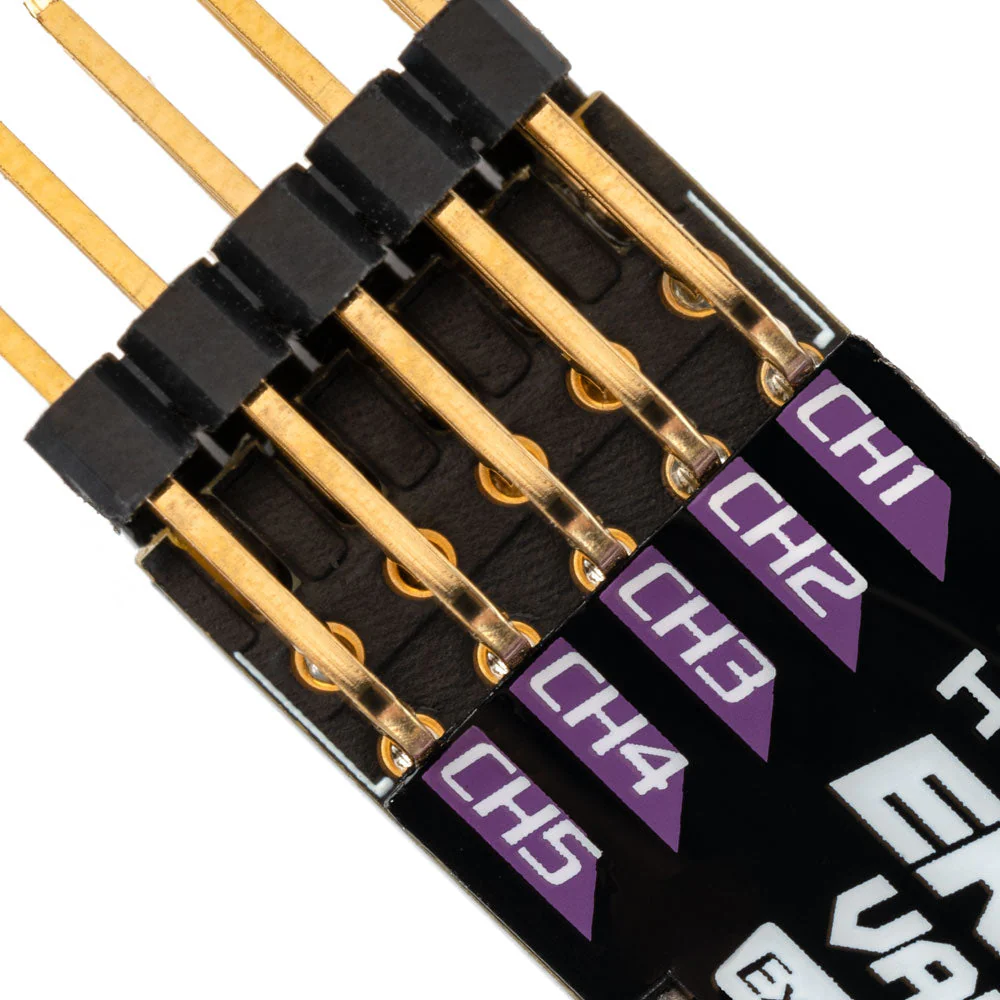

• High quality 2.54 mm connector

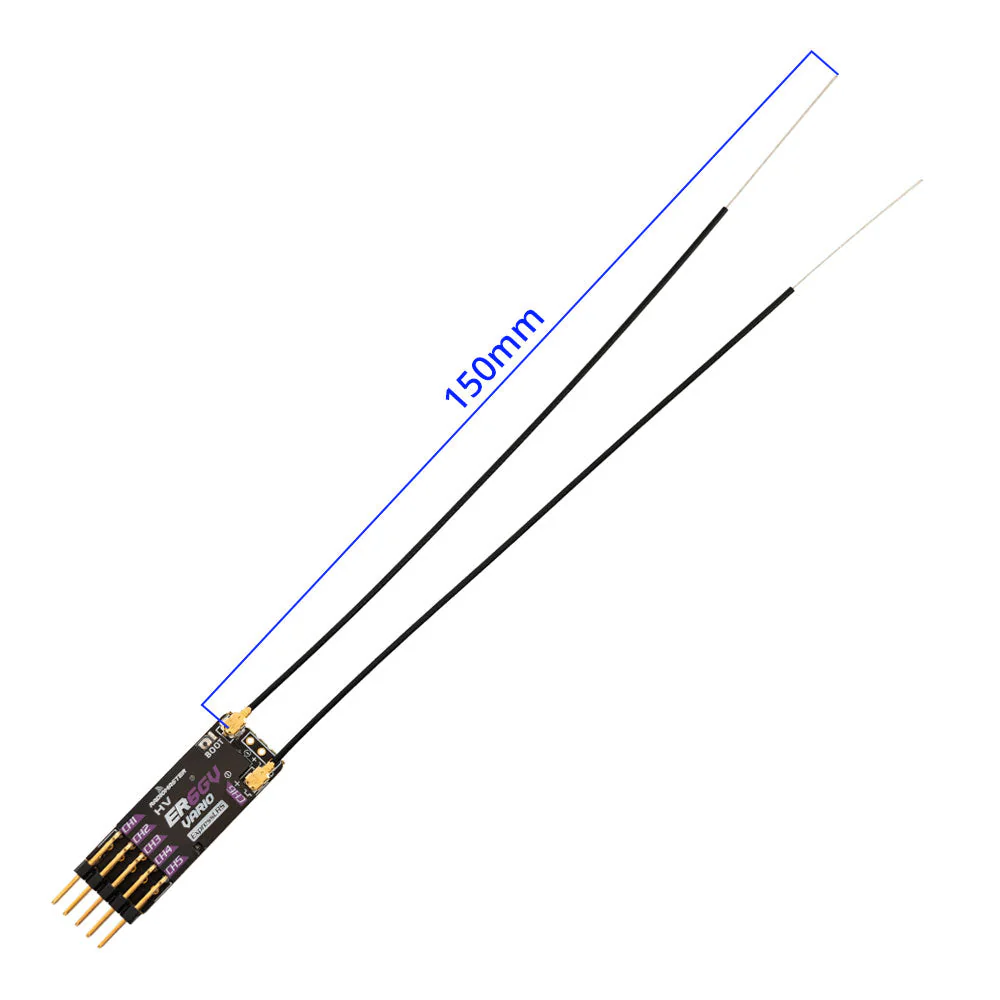

• Standard 15 cm High Sensitivity Antenna
• For many applications
• Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS

Specification (ER6G)

• Item: ER6G 2.4GHz ELRS PWM Receiver
• Power supply: DC 3.5 – 8.4V
• Antenna type: 15cm high sensitivity antenna
• Wireless protocol: ExpressLRS 3.3.0 pre-installed
• Output channel: 6CH PWM
• Telemetry power: maximum 50mw (LUA Adjustable)
• Battery voltage detection range: DC 3.0 – 26V
• Weight: 5.0 grams
• Dimensions: 42*13*8mm
• Firmware: Device Category: Radiomaster 2.4Ghz / Device: RadioMaster ER6-G 2.4GHz Diversity+6xPWM RX

Specification (ER6GV)

• Item: ER6GV 2.4GHz ELRS PWM Receiver
• Power supply: DC 3.5 – 8.4V
• Antenna type: 15cm high sensitivity antenna
• Wireless protocol: ExpressLRS 3.2 pre-installed
• Output channel: 6CH PWM
• Return power: maximum 50mw (LUA Adjustable)
• Built-in high-precision air pressure sensor (Vario)
• Battery voltage detection range: DC 3.0 – 26V
• Weight: 5.0 grams
• Dimensions: 42*13*8mm
• Firmware: Device Category: Radiomaster 2.4Ghz / Device: RadioMaster ER6-GV 2.4GHz Diversity+6xPWM+Vario RX

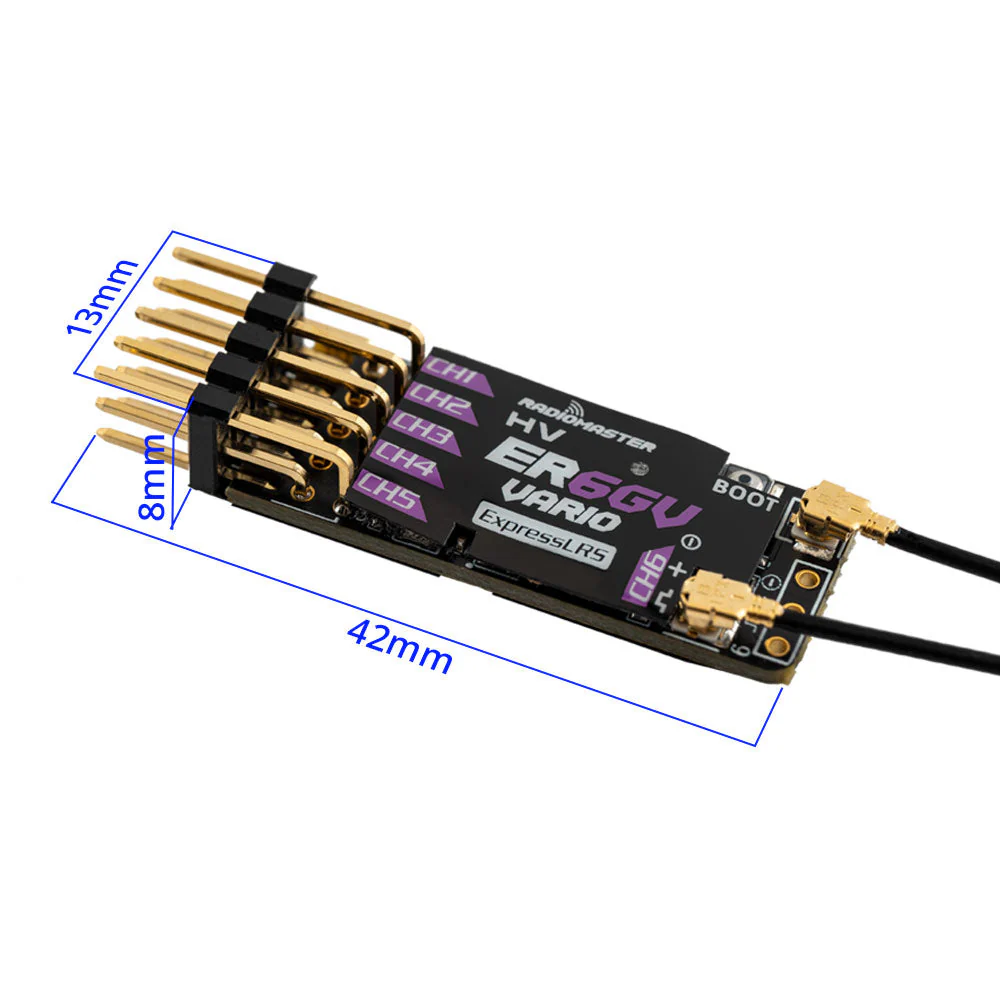

Size

RadioMaster ER Series Receivers

• ER4 ELRS PWM Receiver
• ER6 ELRS PWM Receiver
• ER8 ELRS PWM Receiver
• ER6G/ER6GV ELRS PWM Receiver
• ER8G/ER8GV ELRS PWM Receiver

Package Includes

• 1 * ER6G or ER6GV 2.4GHz ELRS PWM Receiver
• 1 * Voltage telemetry wire (Type-A)
• 2 * Heat-shrink tube
• 1 * User Card
